ControlsSystem
Fig.7-7
Fig.7-8
Fig.7-9

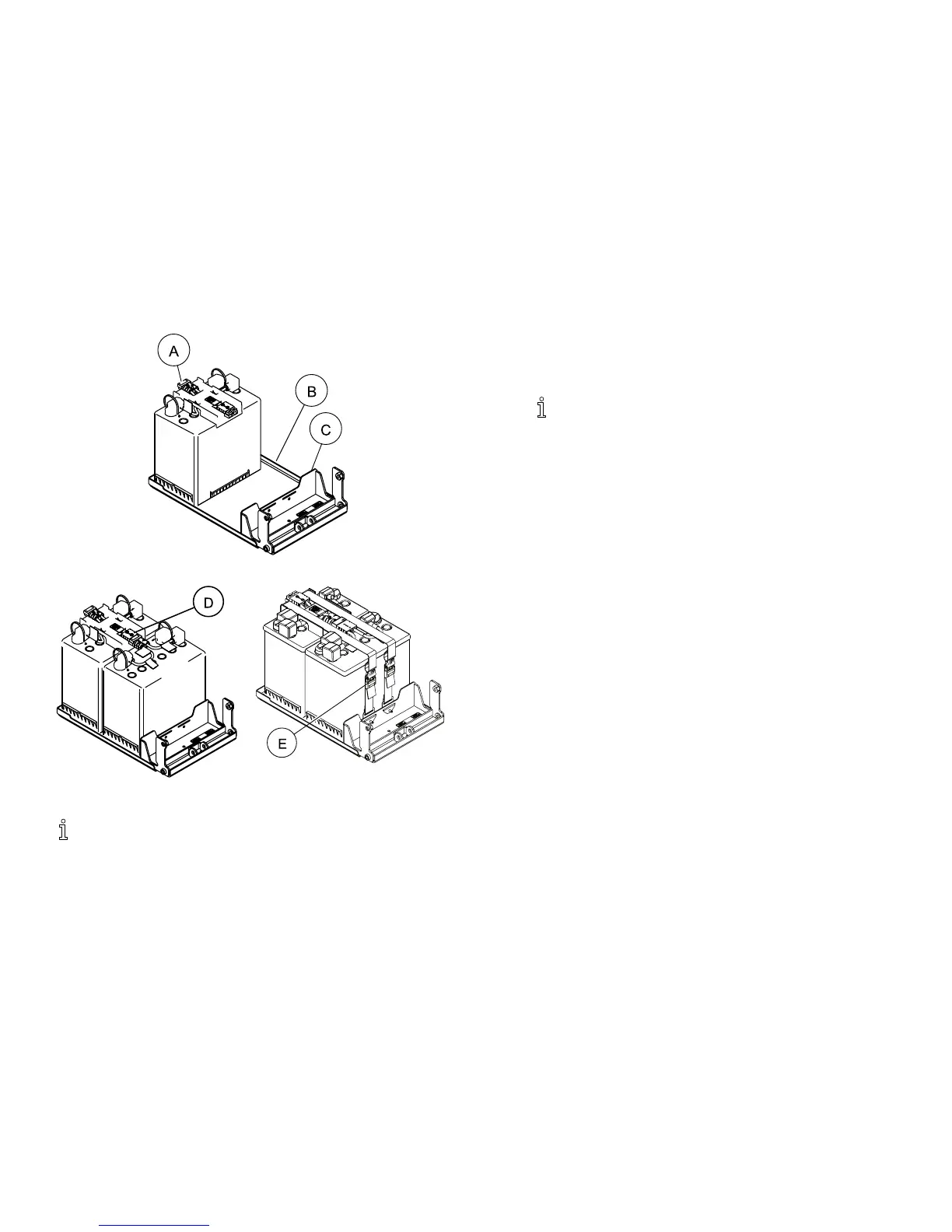

Positioningofthebatteriesintothebatterytrayis
completedwithbatterytraypositionedinwheelchair
andpartiallypulledout.Illustrationsareshown
withoutthewheelchairforclaricationpurposes
only.
1.PositionthebatterywithbatteryconnectorbracketA
againstthebackedgeofthebatterytrayBinthe
orientationasshown.
BatteriesMUSTbeinstalledintheorientation
shownsothatthewiringharnessescanbe
connectedtogether.
2.Positiontheremainingbatterybetweenthebatteryon
thetrayandbatterystopC.
3.ConnectbatteriestogetherD.
4.ConnectbatterystrapsE.
5.Slidethebatterytrayintothewheelchair
6.Installtherearshroud,frontshroudandbattery
retentionbracket.Referto9.6Removing/Installingthe
Shrouds,page70.
7.IfInstallingNEWbatteries—TheBatterySynchronization
ProcedureMUSTbeperformedwithin24hoursof
poweringonthewheelchair .Otherwisethebattery
gaugewillnotdisplayaccuratebatterychargelevels.
TheBatterySynchronizationProcedurecanbefoundin
theLiNXservicemanualandmustbeperformedbya
providerorqualiedtechnician.
