Mechanical Installation

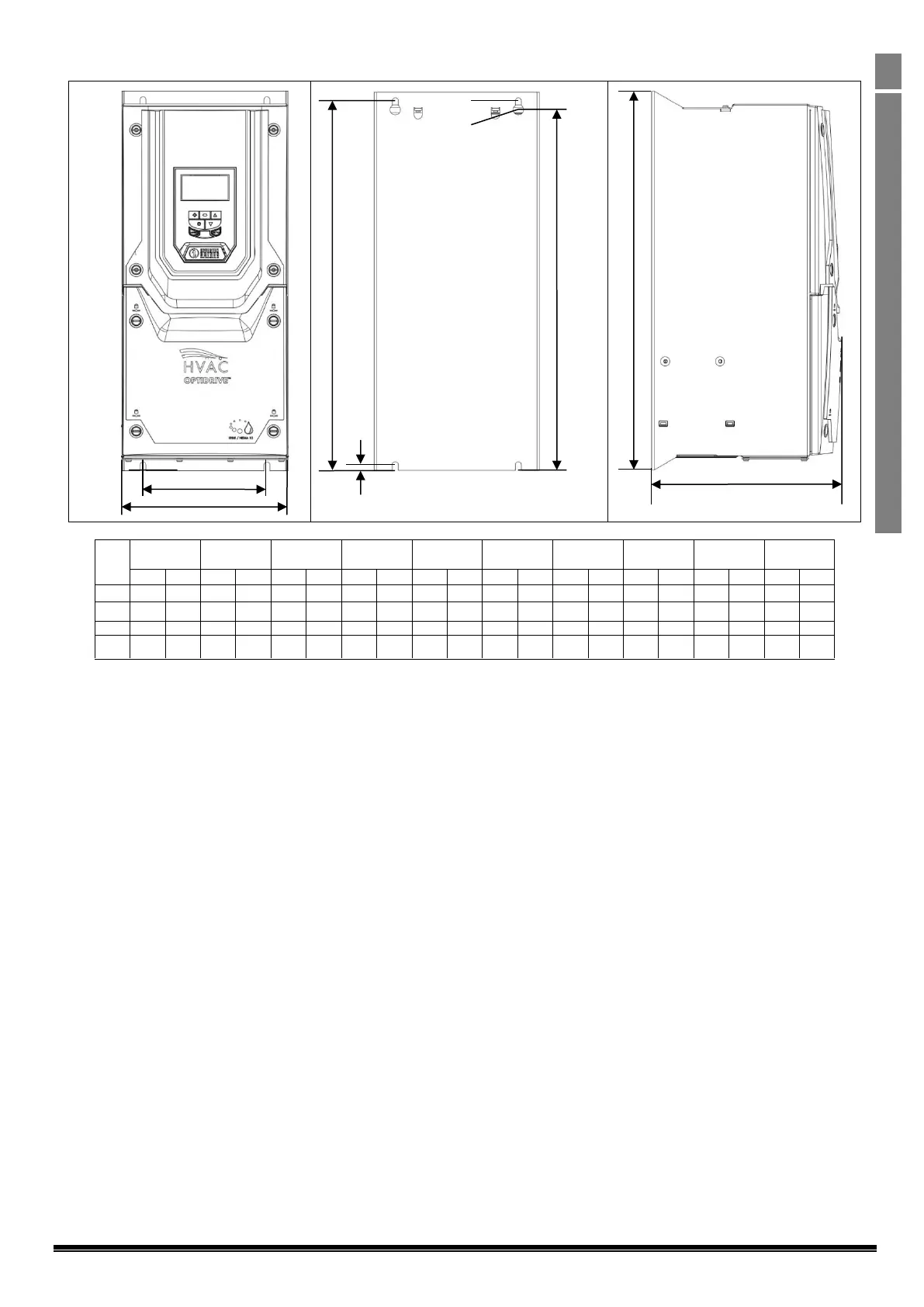

3.4.2. IP55 Units
Drive
Size
A
B
C
D
E
F
G
H
I
Weight
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
Kg
Ib
4
450
17.32
428
16.46
433
16.65
8
0.31
252
9.92
171
6.73
110
4.33
4.25
0.17
7.5
0.30
11.5
25.4
5
540
21.26
515
20.28
520
20.47
8
0.31
270
10.63
235
9.25
175
6.89
4.25
0.17
7.5
0.30
22.5
49.6
6
865
34.06
830
32.68
840
33.07
10
0.39
330
12.99
330
12.99
200
7.87
5.5
0.22
11
0.43
50
110.2
7
1280
50.39
1245
49.02
1255
49.41
10
0.39
360
14.17
330
12.99
200
7.87
5.5
0.22
11
0.43
80
176.4
Mounting Bolts
Frame Size 4 : M8 (5/16 UNF)
Frame Size 5 : M8 (5/16 UNF)
Frame Size 6 : M10 (3/8 UNF)
Frame Size 7 : M10 (3/8 UNF)
Tightening Torques
Control Terminal Torque Settings : All Sizes : 0.8 Nm (7 lb-in)
Power Terminal Torque Settings : Frame Size 4 : 4 Nm (3 lb-ft)
Frame Size 5 : 15 Nm (11.1 lb-ft)
Frame Size 6 : 20 Nm (15 lb-ft)
Frame Size 7 : 20 Nm (15 lb-ft)
G
F
A
B
C
D
E
ØH
ØI
