Invertek Drives Optidrive Series User Manual

Optidrive HVAC User Guide V2.00
14
www.invertekdrives.com
3
Mechanical Installation

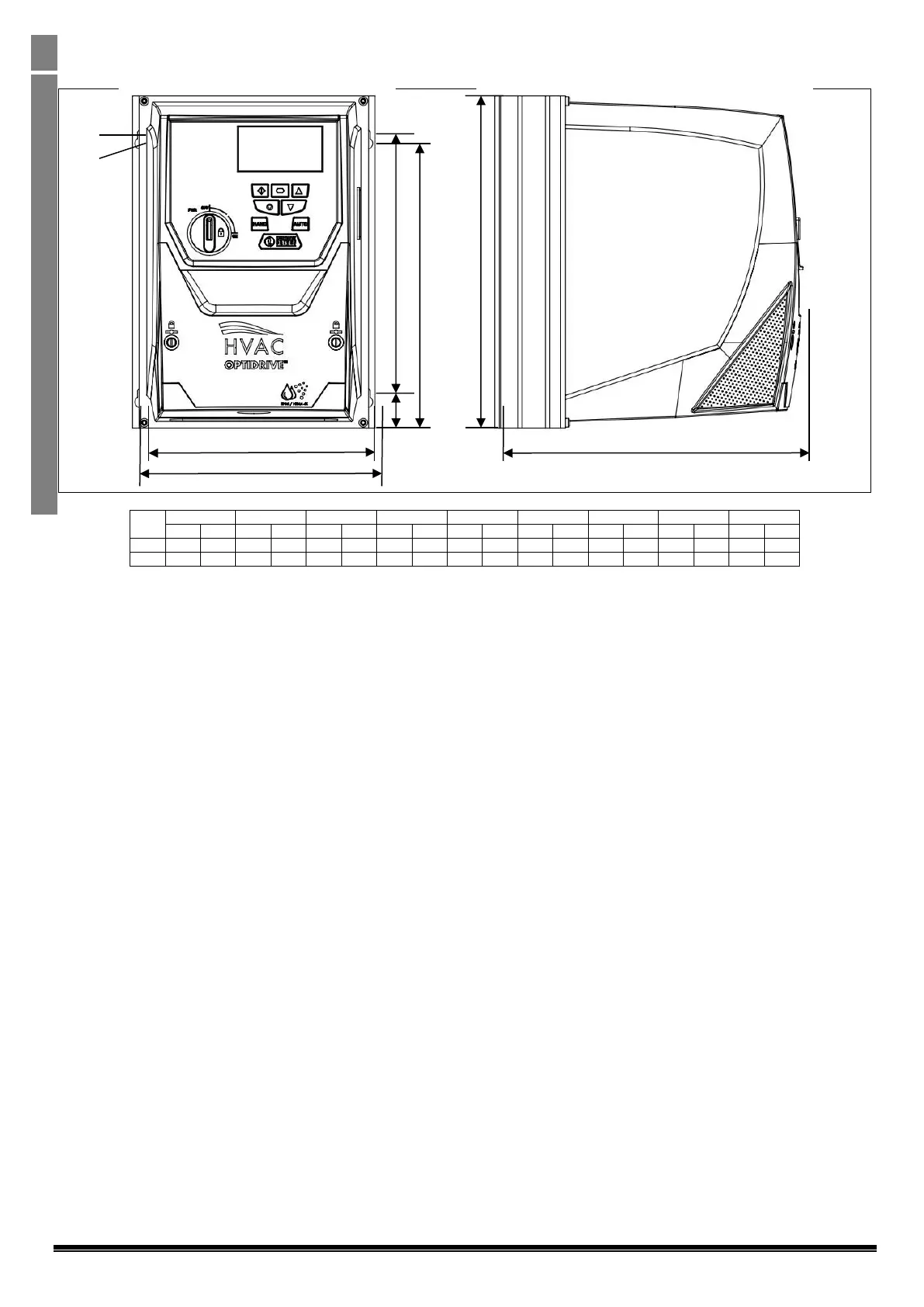

3.4.3. IP66 Units
Drive
Size
A
B
D
F
G
H
I
J
Weight
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
Kg
Ib
2
257
10.12
220
8.66
200
7.87
239
9.41
188
7.40
176
6.93
4.2
0.17
8.5
0.33
4.8
10.6
3
310
12.20
277
10.89
252
9.90
251
9.88
211
8.29
198
7.78
4.2
0.17
8.5
0.33
7.3
16.1
Mounting Bolt Sizes
All Frame Sizes 4 x M4 (#8)
Tightening Torques
Control Terminal Torque Settings : All Sizes : 0.8 Nm (7 lb-in)
Power Terminal Torque Settings : Frame Size 2 : 1.2 – 1.5 Nm (10 – 15 lb-in)
A
F
G
H
D
B
E
ØH
ØI
