INVT BPD1K5TNAC User Manual

BPD series PV pumping inverter Product overview
17

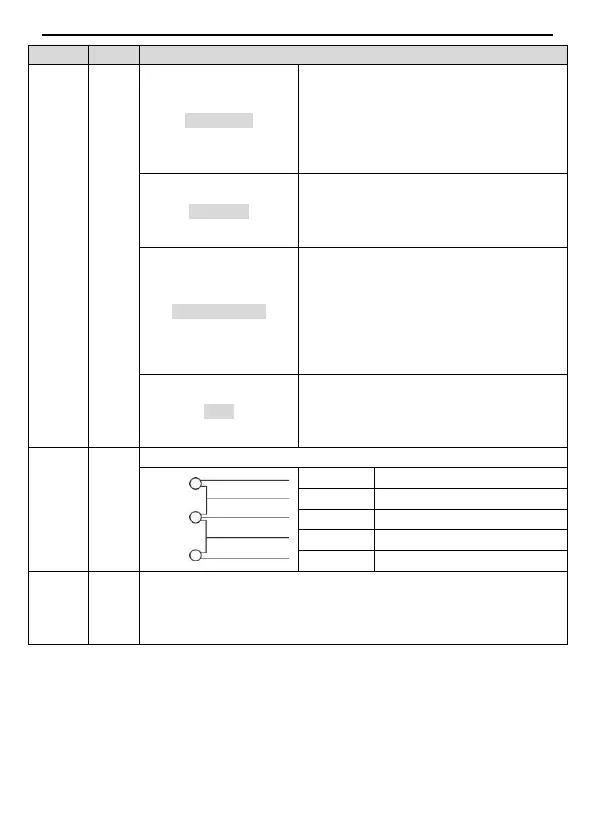

No.
Name
Description
1
Status
indicato
r
RUN/TUNE
Running status indicator.
LED off means that the inverter is in the
stopping state; LED blinking means the
inverter is in the parameter autotuning state;
LED on means the inverter is in the running
state.
FWD/REV
FED/REV indicator.
LED off means the inverter is in the forward
rotation state; LED on means the inverter is in
the reverse rotation state
LOCAL/REMOT
LED for keypad operation, terminals
operation and remote communication control;
LED off means that the inverter is in the
keypad operation state; LED blinking means
the inverter is in the terminals operation state;
LED on means the inverter is in the remote
communication control state.
TRIP
Fault indicator.
LED on when the inverter is in the fault state;
LED off in normal state; LED blinking means
the inverter is in the overload pre-alarm state.
2
Unit
indicato
r
Indicating the unit of the displayed digits
Hz
Unit of frequency
A
Unit of current
V
Unit of voltage
RPM
Unit of rotating speed
%
Percentage
3
Code
displayi
ng
zone
5-digit LED display, displaying various monitoring data and alarm code
such as set frequency and output frequency.
