INVT BPD1K5TNAC - 6 Commissioning Guide; Commissioning on PV Power Supply; Wiring for PV Power Supply

BPD series PV pumping inverter Commissioning guide
62
6 Commissioning guide
6.1 Commissioning on PV power supply
1. Perform the wiring according to the diagram and check the wiring is correct. After
the wiring is properly performed, switch on Q2.
For models of 380V, you also need to switch on the DC switch on the enclosure.
S4
PV+
PV pumping inverter
M
U V W
L N PE
CO
M
S2
S3
COM
PE
485-
485+
PV-
Q2
PV solar panels
Run/Stop
Reservoir
PE
Full water signal
Non-water signal

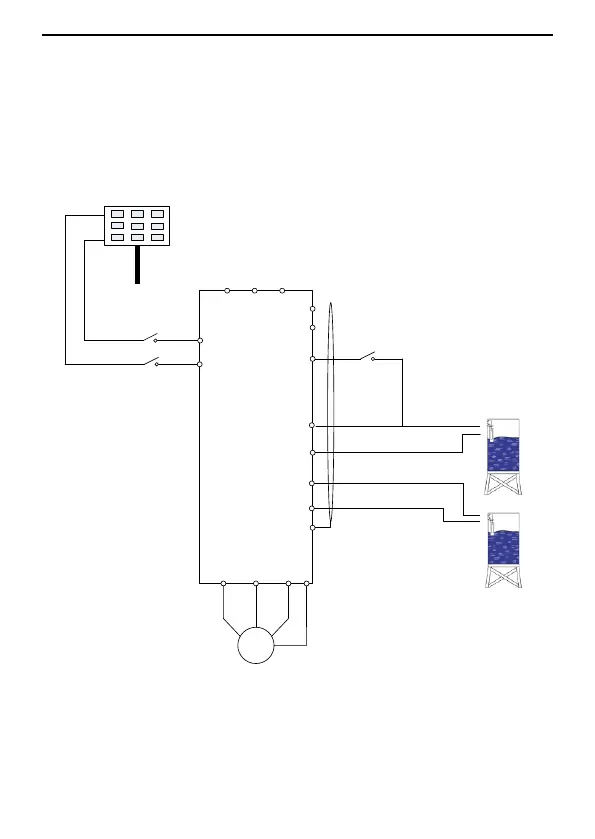

Figure 6.1 Wiring for PV power supply
2. Set the motor parameters.
(1) Set P00.18=1 to restore the factory settings.
(2) Set the motor type through P02.00: 0 indicates 3PH motor and 1 indicates
1PH motor. You need to set P04.34 to 0x01 when the capacitor-removed 1PH
