BPD series PV pumping inverter Installation guide
55
the operators cannot release the device until the inverter is installed on the bracket
firmly.

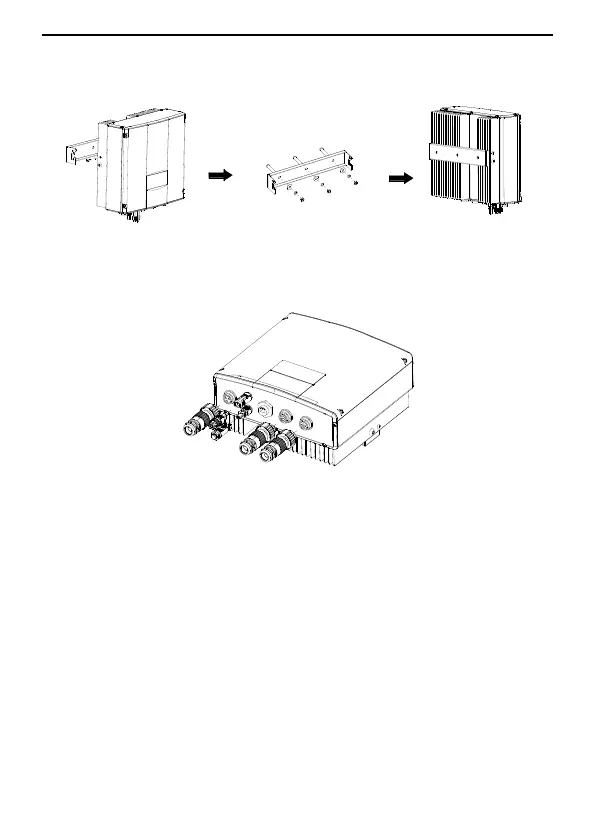

Figure 5.5 Inverter installation
5.4 Electrical installation
Figure 5.6 Electrical wiring of the inverter
Steps of electrical connection:
(1) If the distance between the solar inverter and the motor is longer than 50 meters, it is
recommended to install the output reactor to avoid the frequent overcurrent protection
and the motor isolation damage. For models of reactors, consult INVT.
(2) Connect the DC output, AC input, AC output and the communication wire to the
males, and then plug them to the females of the inverter. Tighten up to ensure the proper
connection. Press a male as follows.
To Next Page
