INVT BPD1K5TNAC User Manual

BPD series PV pumping inverter Product overview
20
Stop state
parameter display
Running state
parameter display
Fault state display
RUN/TUNE FWD/REV LOCAL/REMOT TRIP
Hz
A
V
%
RPM
RUN/TUNE FWD/REV LOCAL/REMOT TRIP
Hz
A
V
%
RPM
Hz
A
V
%
RPM
RUN/TUNE FWD/REV LOCAL/REMOT TRIP
PRG
ESC
QUICK
JOG
DATA
ENT
>
>
SHIFT
RUN
STOP
RST
PRG
ESC
QUICK
JOG
DATA
ENT
SHIFT
RUN
STOP
RST
>
>
>
>
PRG
ESC
QUICK
JOG
DATA
ENT
RUN
STOP
RST
SHIFT

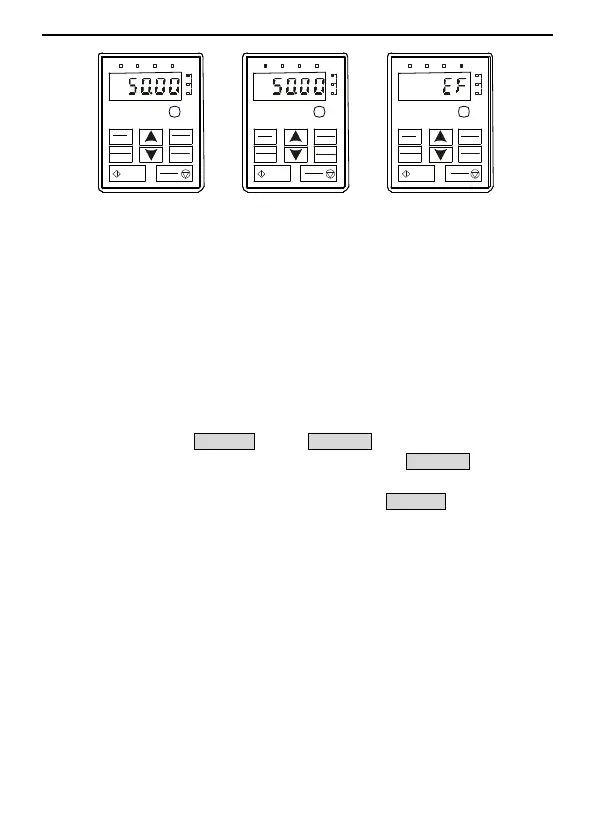

Figure 2.10 Display in various states
2.7.3 Keypad operation
Operate the inverter via operation panel. For the detailed structure description of
function codes, see section 3.1.
2.7.3.1 How to modify the function codes
The PV pumping inverter has three levels of menus, which are:
1. Group number of function code (first-level menu)
2. Tab of function code (second-level menu)
3. Set value of function code (third-level menu)
Remarks: Press both the PRG/ESC and the DATA/ENT can return to the second-level
menu from the third-level menu. The difference is: pressing DATA/ENT will save the
parameter settings into the control panel, and then return to the second-level menu and
shift to the next function code automatically; while pressing PRG/ESC will directly return
to the second-level menu without saving the parameter settings, and keep staying at the
current function code.
Under the third-level menu, if the parameter has no flickering bit, it means the function
code cannot be modified. The possible reasons could be:
(1) This function code is not modifiable parameter, such as actual detected parameter,
operation records and so on;
(2) This function code is not modifiable in running state, but modifiable in stop state.
Example: Set function code P00.01 from 0 to 1.
