INVT BPD1K5TNAC User Manual

BPD series PV pumping inverter Installation guide
53
(1)The environment temperature is between -25°C and 60°C .

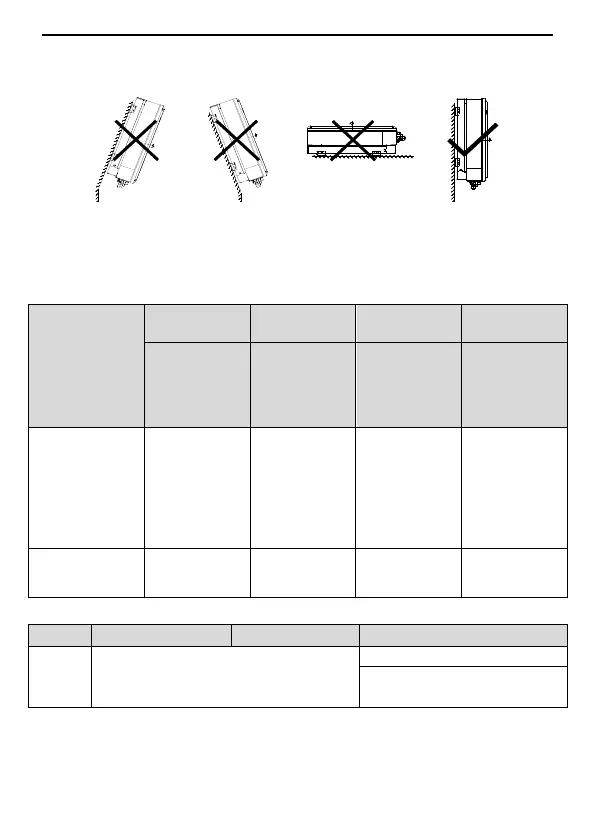

(2)The installation surface is perpendicular to the horizontal line. Refer to the Figure 5.2.
Figure 5.2 Installation position
5.2.2 Cable specifications
Select AC and DC cables based on the following specification requirements.
Cable specifications
Model
DC side
AC input side
AC output side
Communication
cable
Recommended
cross-sectional
area
mm²/
Cable No.
Recommended
cross-sectional
area
mm²/
Cable No.
Recommended
cross-sectional
area
mm²/
Cable No.
Recommended
cross-sectional
area
mm²/
Cable No.
BPD0K7TN(AC)/
BPD1K5TN(AC)/
BPD2K2TN(AC)/
BPD2K2TRAC(S)/
BPD004TRAC(S)
4mm
2
/12 AWG
4mm
2
/12 AWG
2.5mm
2
/14 AWG
0.52mm
2
/20
AWG
BPD004TNAC/
BPD5K5TRAC(S)
4mm
2
/12 AWG
6mm
2
/10 AWG
4mm
2
/12 AWG
0.52mm
2
/20
AWG
Recommended crimp tools and insertion and removal tools for cables
AC input side
AC output side
Communication cable
Tool
Cross screwdriver
Crimp tools: CT-P20/28
Insertion and removal tools:
RT-1.0
5.3 Mechanical installation
It is recommended to install the inverter on the firm wall or metal bracket vertically. Take
the typical installation environment as the example, the manual describes how to install
