INVT BPD1K5TNAC User Manual

BPD series PV pumping inverter Installation guide
57

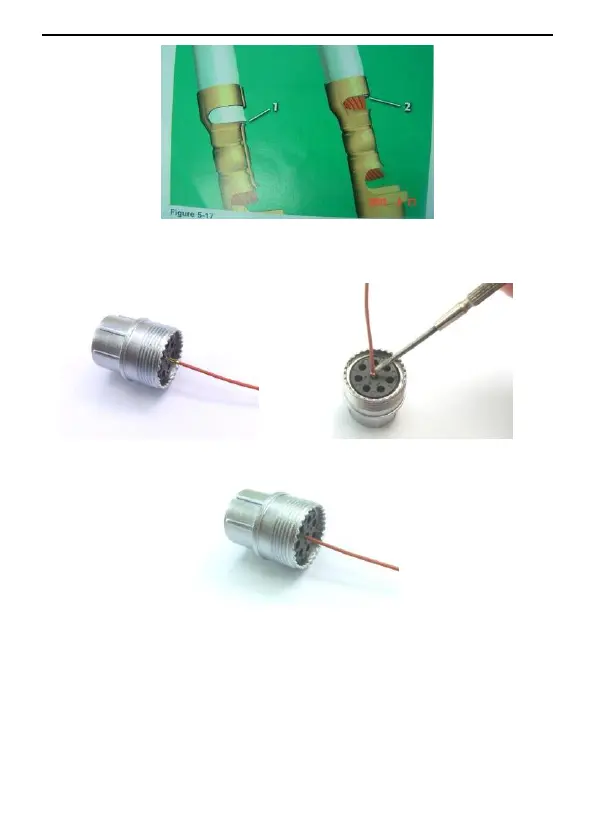

Figure 5.10 Unqualified contactor
(4) Install the contactor and the product
a. Push directly.
b. Push with tools when the cable is too thin.
c. The pushing is finished.
Figure 5.11 Cable installation
(5) Remove the pin.

INVT BPD1K5TNAC Specifications

General

Brand	INVT
Model	BPD1K5TNAC
Category	Inverter
Language	English
