INVT BPD1K5TNAC User Manual

BPD series PV pumping inverter Product overview
21
The units place
is blinking.
All digits are
blinking.
PRG
ESC
PRG
ESC
PRG
ESC
PRG
ESC
DATA
ENT
DATA
ENT
DATA
ENT
The units place is blinking.
The units place is blinking.
Note: When setting the value, you can press and to modify the value.
+

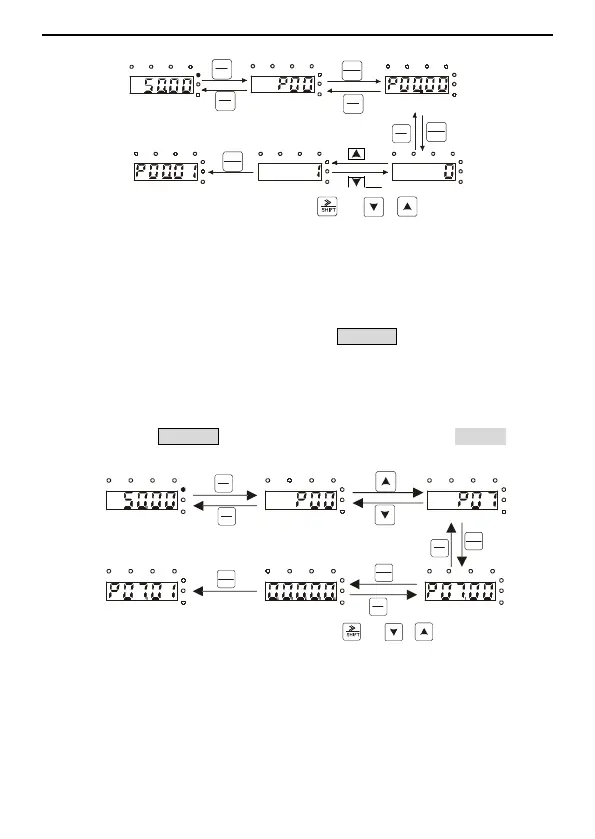

Figure 2.11 Parameter modification
2.7.3.2 How to set the password of the inverter
BPD series PV pumping inverters provide password protection function to users. Set
P7.00 to gain the password and the password protection becomes valid instantly after
quitting from the function code editing state. Press PRG/ESC again to the function code
editing state, "0.0.0.0.0" will be displayed. Unless using the correct password, the
operators cannot enter it.
Set P7.00 to 0 to cancel password protection function.
The password protection becomes valid instantly after retreating from the function code
editing state. Press PRG/ESC again to the function code editing state, "0.0.0.0.0" will be
displayed. Unless using the correct password, the operators cannot enter it.
PRG
ESC
PRG
ESC
PRG
ESC
PRG
ESC
DATA
ENT
DATA
ENT
DATA
ENT
Note: When setting the value, you can press and to modify the value.
+
The units place
is blinking.
All digits are
blinking.
The units place is blinking.
The units place is blinking.The units place is blinking.The units place is blinking.
Figure 2.12 Password setting
2.7.3.3 How to watch the inverter state through function codes
BPD series PV pumping inverters provide group P17 as the state inspection group.
Users can enter into P17 directly to watch the state.
