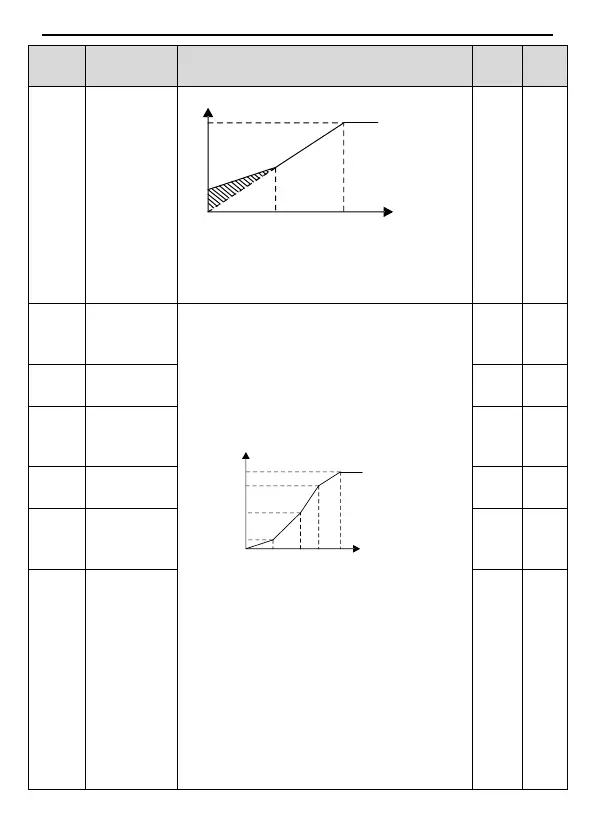

BPD series PV pumping inverter Function parameters
29
Function
code
Name
Detailed description
Default
Modify
Output voltage
Output frequency
f
Max.
f
b
V
b
V
boost
Setting range of P04.01: 0.0%:(automatic)
0.1%–10.0%
Setting range of P04.02: 0.0%–50.0%
P04.03
V/F
frequency point
1
If P04.00 =1, the user can set V//F curve by
P04.03–P04.08
V/F is set to the motor load.
Note: V1＜V2＜V3, f1＜f2＜f3. If the
low-frequency voltage is high, overtemperature
and burning may occur and the overcurrent stall
and protection may occur to the solar inverter.
Output voltage
Output frequency
Hz
V1
V2
V3
f1 f2 f3
100% V
b
f
b
Setting range of P04.03: 0.00Hz–P04.05
Setting range of P04.04: 0.0%–110.0% (rated
voltage of motor1)
Setting range of P04.05: P04.03–P04.07
Setting range of P04.06: 0.0%–110.0%(rated
voltage of motor1)
Setting range of P04.07: P04.05–P02.02(rated
frequency of motor1) or P04.05– P02.16(rated
frequency of motor1)
Setting range of P04.08: 0.0%–110.0% (rated
voltage of motor1)
0.00Hz
○
P04.04
V/F
voltage point 1
00.0%
○
P04.05
V/F
frequency
point 2
00.00Hz
○
P04.06
V/F
voltage point 2
00.0%
○
P04.07
V/F
frequency
point 3
00.00Hz
○
P04.08
V/F
voltage point 3
00.0%
○
