5.5.18 Electric wiring and timing diagram of HVAC function
The value 0 of P94.10 indicates using the fixed variable-frequency pump logic. When
variable-frequency motors are fixed, only power-frequency pumps can be switched over.
The value 1 of P94.10 indicates using the cyclic variable-frequency pump logic. Then four relays can
be used to control the variable/power frequency switchover of four motors

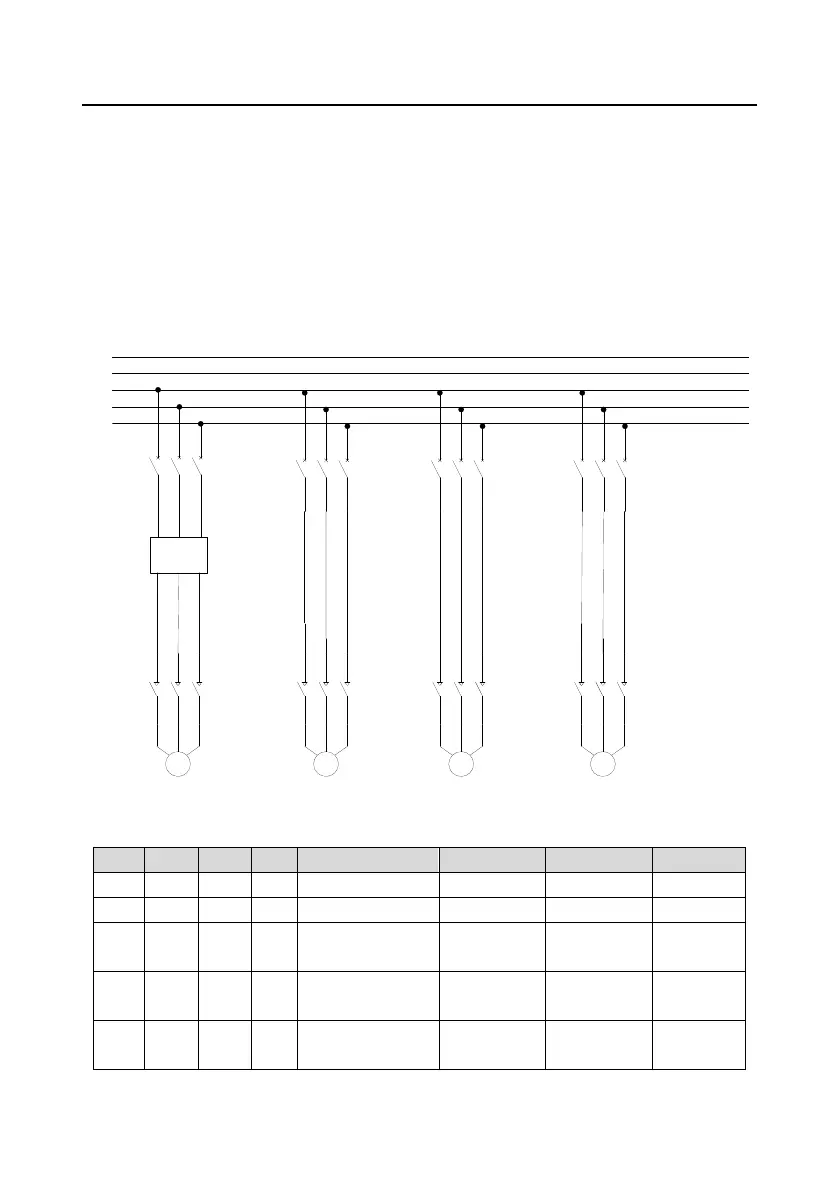

5.5.18.1 Main circuit wiring diagram of one driving four in fixed variable-frequency pump logic
PE
N
L1
L2
L3
VFD
M1 M2 M3 M4
QF1 QF2
QF3 QF4 QF5
KM1 KM2 KM3 KM4
R S T
U V W
Figure 5±6 Control circuit wiring diagram in fixed variable-frequency pump logic
Table 5-2 Motor adding logic with fixed variable-frequency motors
RO1
RO2
RO3
RO4
VF motor
PF motor 1
PF motor 2
PF motor 3
0
0
0
0
Stop
Stop
Stop
Stop
1
0
0
0
Variable frequency
Stop
Stop
Stop
1 1 0 0 Variable frequency
Power
frequency
Stop Stop
1 1 1 0 Variable frequency
Power
frequency
Power
frequency
Stop
1 1 1 1 Variable frequency
Power
frequency
Power
frequency
Power
frequency
