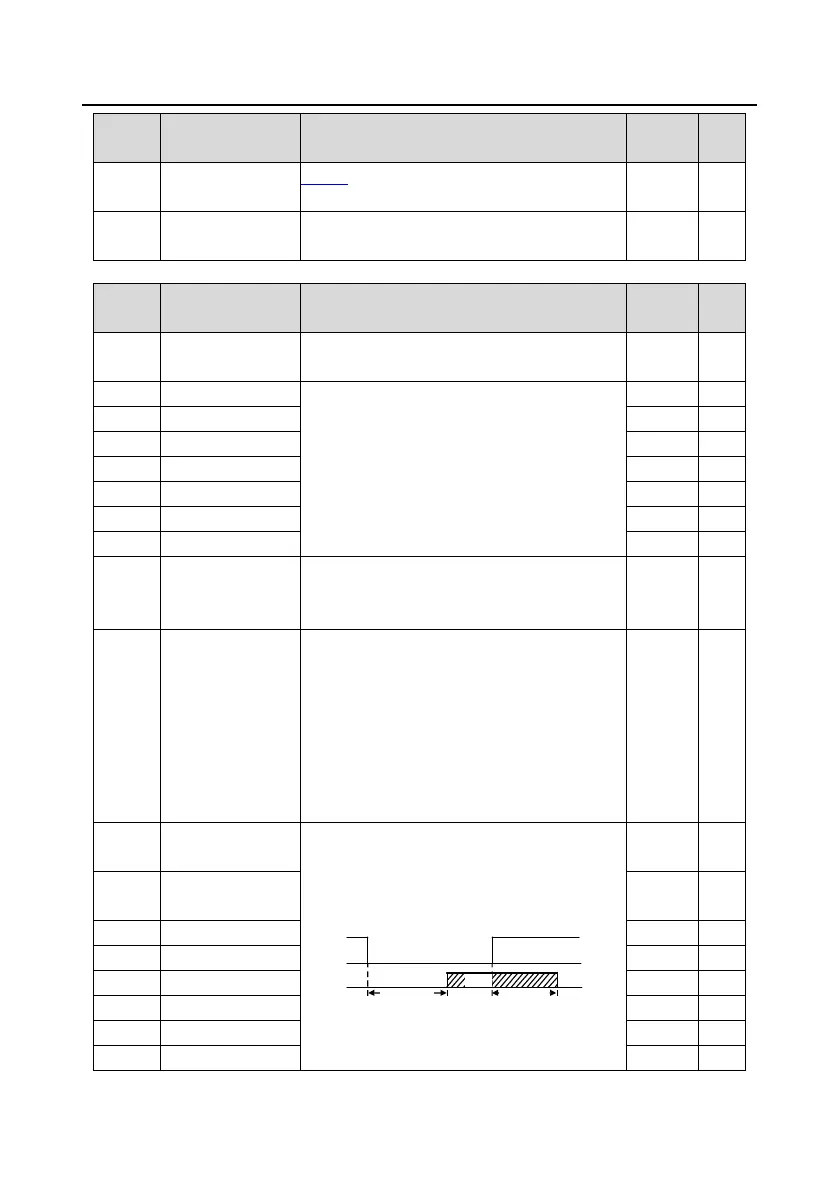

INVT GD270-090-4 - P25 Group I;O Card Input Functions

Goodrive270 series VFD for fan and pump Function parameter list
-215-
Function
code
Name Description Default
Modify
switching threshold
P23.14
setting range: 0.0±100.0% (of the max.
frequency)
P23.15±
P23.19
Reserved
P25 group²I/O card input functions
Function
code
Name Description Default
Modify
P25.00 HDI3 input type
0: HDI3 is high
-speed pulse input
1: HDI3 is digital input
0 Ƽ
P25.01
Function of S5
Same as P05
0
Ƽ
P25.02
Function of S6
0
Ƽ
P25.03
Function of S7
0
Ƽ
P25.04
Function of S8
0
Ƽ
P25.05
Function of S9
0
Ƽ
P25.06
Function of S10
0
Ƽ
P25.07
Function of HDI3
0
Ƽ
P25.08
Expansion card
input terminal
polarity
0x00
±0x7F 0x00 ƻ
P25.09
Expansion card
virtual terminal
setting
0x000
±0x7F (0: Disable. 1: Enable)
BIT0: S5 virtual terminal
BIT1: S6 virtual terminal
BIT2: S7 virtual terminal
BIT3: S8 virtual terminal
BIT4: S9 virtual terminal
BIT5: S10 virtual terminal
BIT6: HDI3 virtual terminal
0x00 Ƽ
P25.10
HDI3 switch-on
delay
Used to spec
ify the delay time corresponding to
the electrical level changes when the
programmable input terminals switch on or
switch off.
Si Electrical
level
Si Valid
Invalid Invalid
Switch-on
delay
Switch-off
delay
Valid
Setting range: 0.000
±50.000s
0.000s ƻ
P25.11
HDI3 switch-off
delay
0.000s ƻ
P25.12
S5 switch-on delay
0.000s
ƻ
P25.13
S5 switch-off delay
0.000s
ƻ
P25.14
S6 switch-on delay
0.000s
ƻ
P25.15
S6 switch-off delay
0.000s
ƻ
P25.16
S7 switch-on delay
0.000s
ƻ
P25.17
S7 switch-off delay
0.000s
ƻ
