Goodrive270 series VFD for fan and pump Installation guidelines
-17-

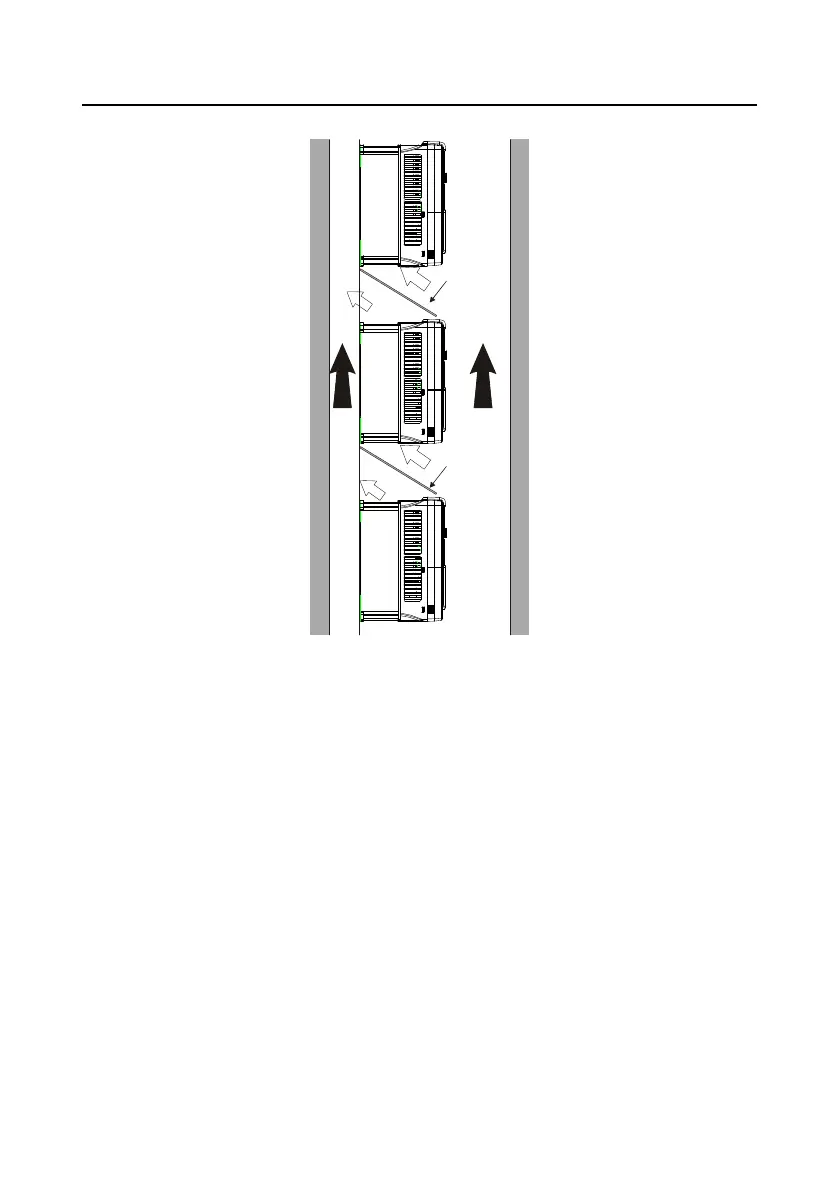

4.2.6 Vertical installation
Cold
Hot
air
air
Cold
Hot
air
air
Air baffle
Air baffle
Figure 4-5 Vertical installation
Note: During vertical installation, you must install air baffles, otherwise, the VFD will
experience mutual interference, and the heat dissipation effect will be degraded.
