Goodrive200A inverters Product overview
9
3.5 Type designation key
The type designation contains information on the inverter. The user can find the type
designation on the type designation label attached to the inverter or the simple name plate.

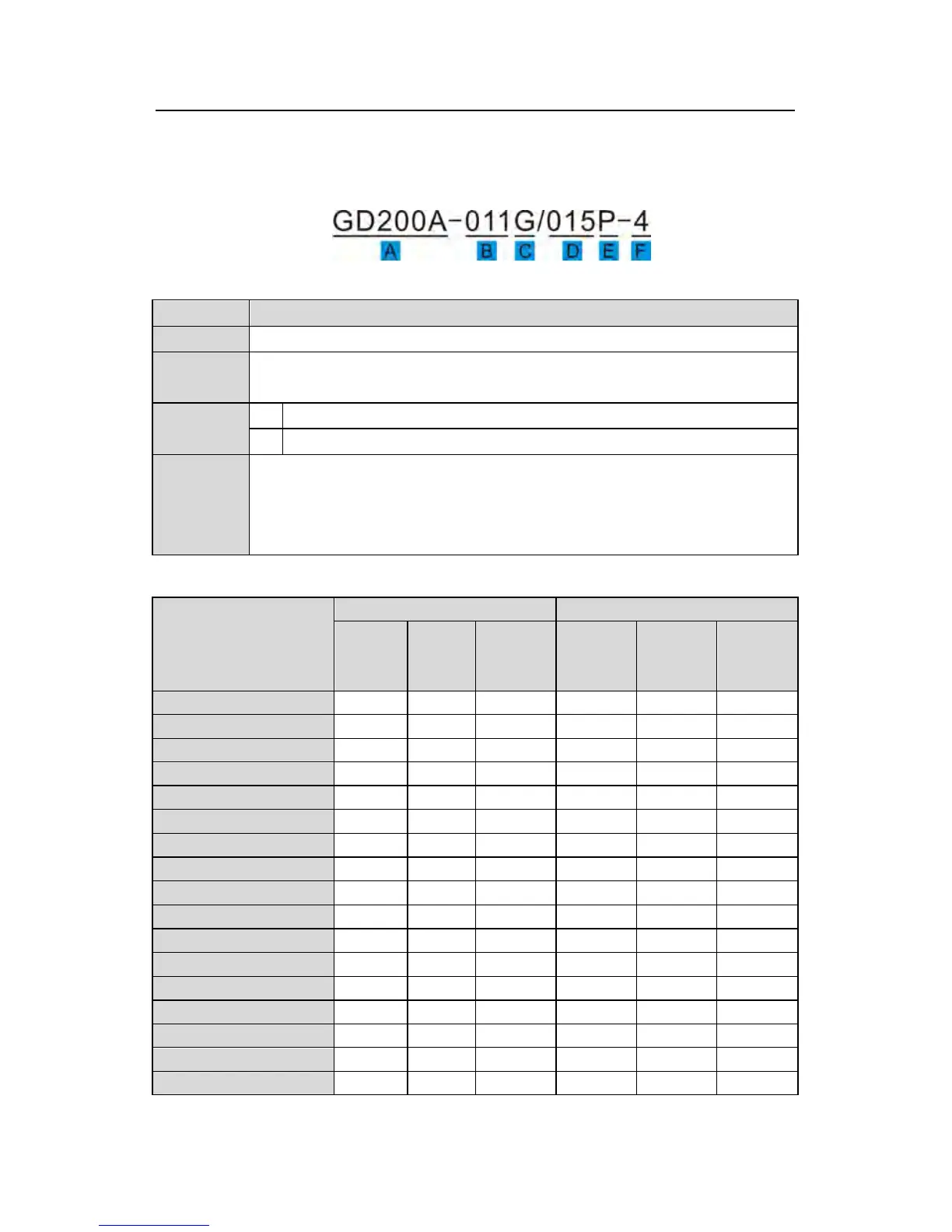

Fig 3-4 Product type
Key Instructions
A GD200A : abbreviation of Goodrive200A
B, D
3-digit code: output power. “R” means the decimal point; ”011”:11kW;
“015”:15kW
C, E
C
G:Constant torque load
E
P:Variable torque load
F
Input voltage degree:
2: AC 3PH 220V(-15%)~240V(+10%)
4: AC 3PH 380V(-15%)~ 440V(+10%)
6: AC 3PH 520V(-15%)~690V(+10%)
3.6 Rated specifications
Model
Constant torque Variable torque
Output
power
(kW)
Input
current
(A)
Output
current
(A)
Output
power
(kW)
Input
current
(A)
Output
current
(A)
GD200A-0R7G-4 0.75 3.4 2.5
GD200A -1R5G-4 1.5 5.0 3.7
GD200A -2R2G-4 2.2 5.8 5
GD200A -004G/5R5P-4
4 13.5 9.5 5.5 19.5 14
GD200A-5R5G/7R5P-4
5.5 19.5 14 7.5 25 18.5
GD200A -7R5G/011P-4
7.5 25 18.5 11 32 25
GD200A -011G/015P-4
11 32 25 15 40 32
GD200A -015G/018P-4
15 40 32 18.5 47 38
GD200A -018G/022P-4
18.5 47 38 22 56 45
GD200A -022G/030P-4
22 56 45 30 70 60
GD200A -030G/037P-4
30 70 60 37 80 75
GD200A -037G/045P-4
37 80 75 45 94 92
GD200A -045G/055P-4
45 94 92 55 128 115
GD200A -055G/075P-4
55 128 115 75 160 150
GD200A -075G/090P-4
75 160 150 90 190 180
GD200A -090G/110P-4
90 190 180 110 225 215
GD200A -110G/132P-4
110 225 215 132 265 260
