INVT Goodrive 200A User Manual

Goodrive200A inverters Product overview
10
Model
Constant torque Variable torque
Output
power
(kW)
Input
current
(A)
Output
current
(A)
Output
power
(kW)
Input
current
(A)
Output
current
(A)
GD200A -132G/160P-4
132 265 260 160 310 305
GD200A -160G/185P-4
160 310 305 185 345 340
GD200A -185G/200P-4
185 345 340 200 385 380
GD200A -200G/220P-4
200 385 380 220 430 425
GD200A -220G/250P-4
220 430 425 250 485 480
GD200A -250G/280P-4
250 485 480 280 545 530
GD200A -280G/315P-4
280 545 530 315 610 600
GD200A -315G/350P-4
315 610 600 350 625 650
GD200A -350G/400P-4
350 625 650 400 715 720
GD200A -400G-4 400 715 720
GD200A -500G-4 500 890 860
Note:
1. The input current of 1.5~315kW inverters is measured when the input voltage is 380V and
no DC reactor and input/output reactor.
2. The input current of 350~500kW inverters is measured when the input voltage is 380V
and the circuit is with input reactor.
3. The rated output current is defined as the output current when the output voltage is 380V.
4. In the allowable voltage range, the output power and current can not exceed the rated
output power and current in any situation.

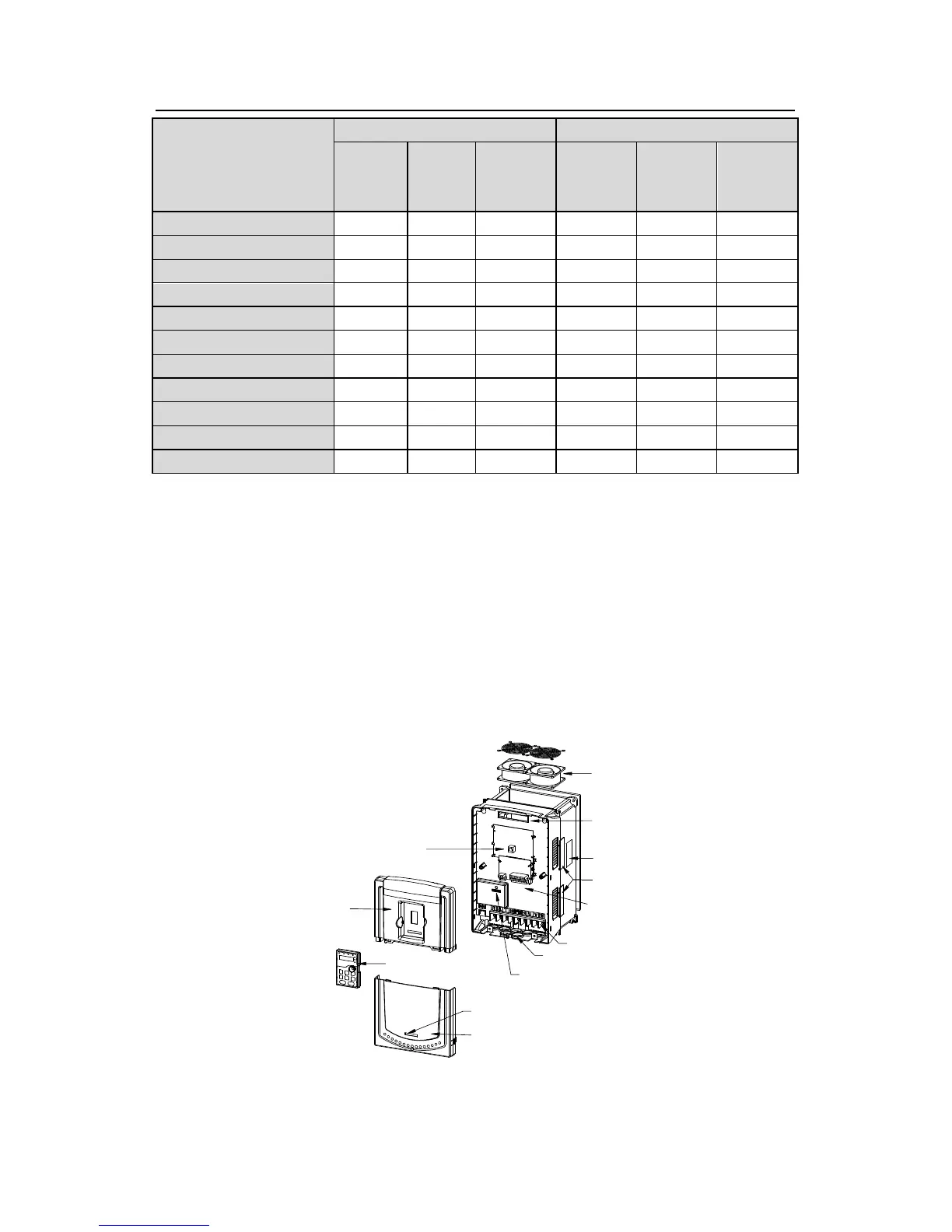

3.7 Structure diagram
Below is the layout figure of the inverter (take the inverter of 30kW as the example).
4
6
7
1
2
3
13
9
10
11
12
8
5
Fig 3-5 Product structure diagram

INVT Goodrive 200A Specifications

General

Brand	INVT
Model	Goodrive 200A
Category	Inverter
Language	English
