Goodrive200A inverters
Appendix B
139
Dimension Drawings Appendix B
B.1 What this chapter contains
Dimension drawings of the Goodrive200A are shown below. The dimensions are reference
in millimeters and inches.

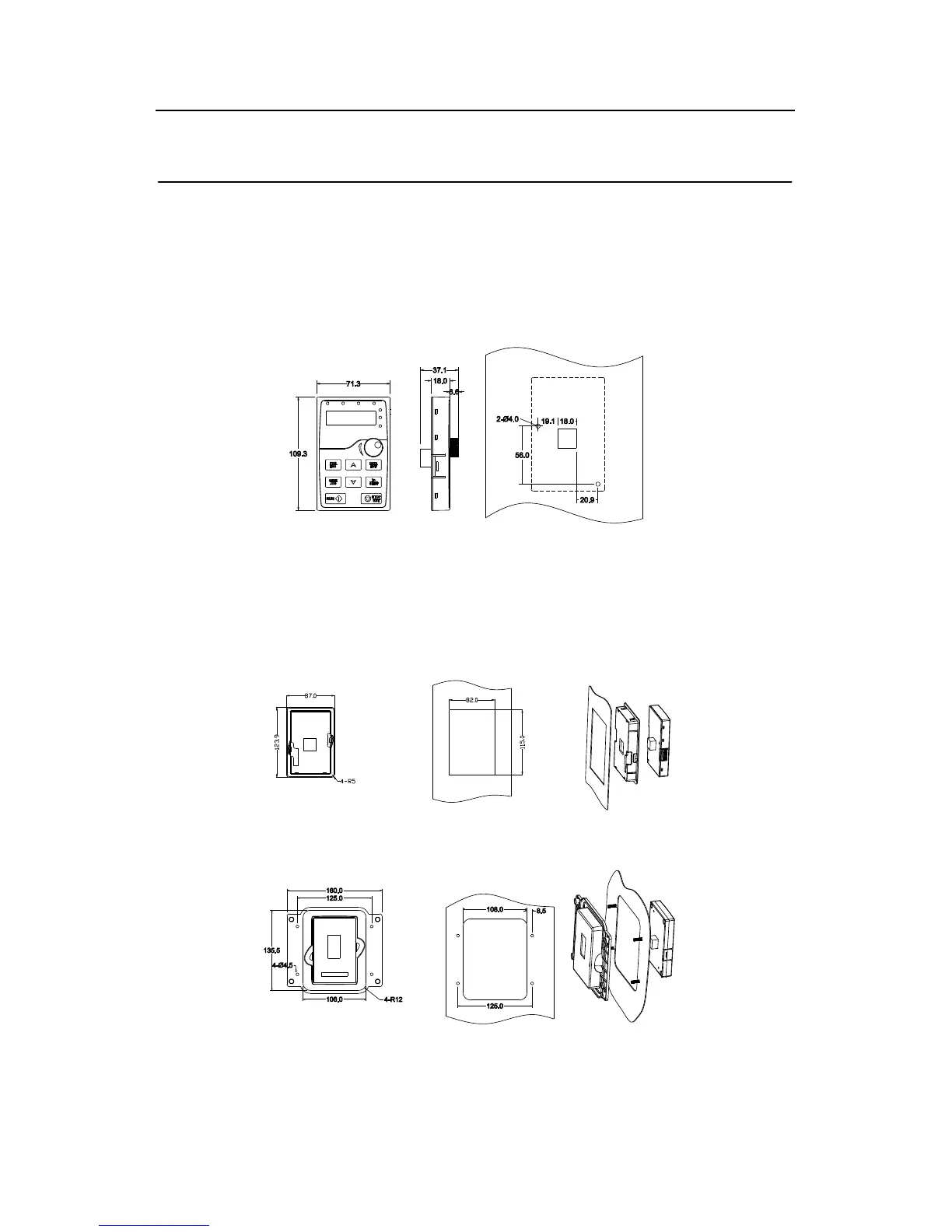

B.2 Keypad structure
B.2.1 Structure chart
keyboard without bracket mountin
g
hole size
B.2.2 Installation chart
Note: The external keypad can be fix by M3 screws directly or the installation bracket. The
installation bracket for inverters of 0.75~30kW is optional and the installtaion bracket for
inverters of 37~500kW is optional or substitutive by the external standard one.
Installation bracket of the key (0.75~500kW)(optional)
键盘安装架
客户安装尺寸
Installation bracket of the key (37~500kW)(standard)
