Goodrive200A inverters Installation guidelines
15

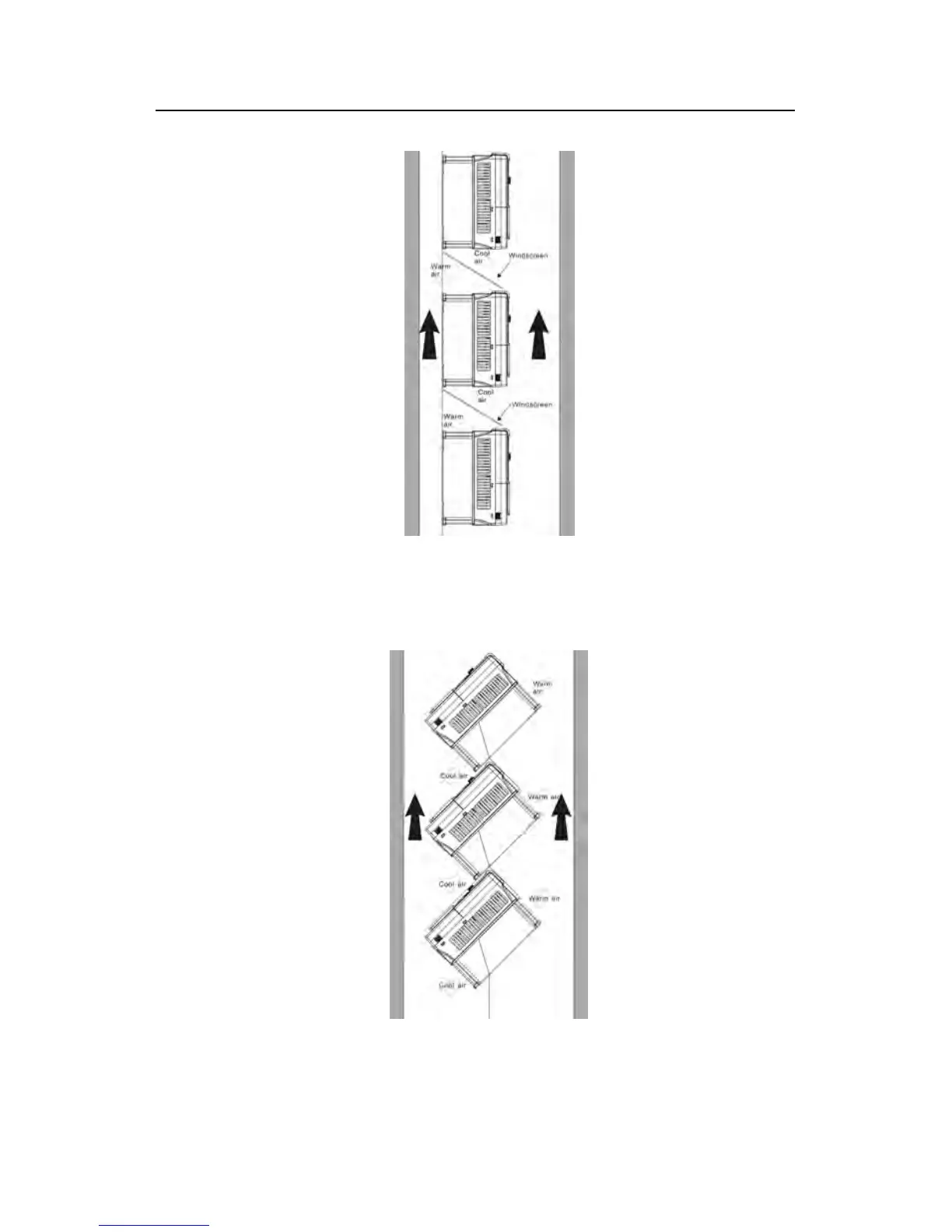

4.2.5 Vertical installation
Fig 4-4 Vertical installation
Note: Windscreen should be added in vertical installation for avoiding mutual impact and
insufficient cooling.
4.2.6 Tilt installation
Fig 4-5 Tilt installation
Note: Ensure the separation of the wind input and output channels in tilt installation for
avoiding mutual impact.
