INVT Goodrive18 Series User Manual

Goodrive18 series two-in-one VFD Dimensional drawing
-143-
Appendix B Dimensional drawing
This chapter provides the dimensions (unit: mm) for Goodrive18 serires two-in-one VFD that is
wall mounted.
W1
H1
W2
H2
Φ D
D1

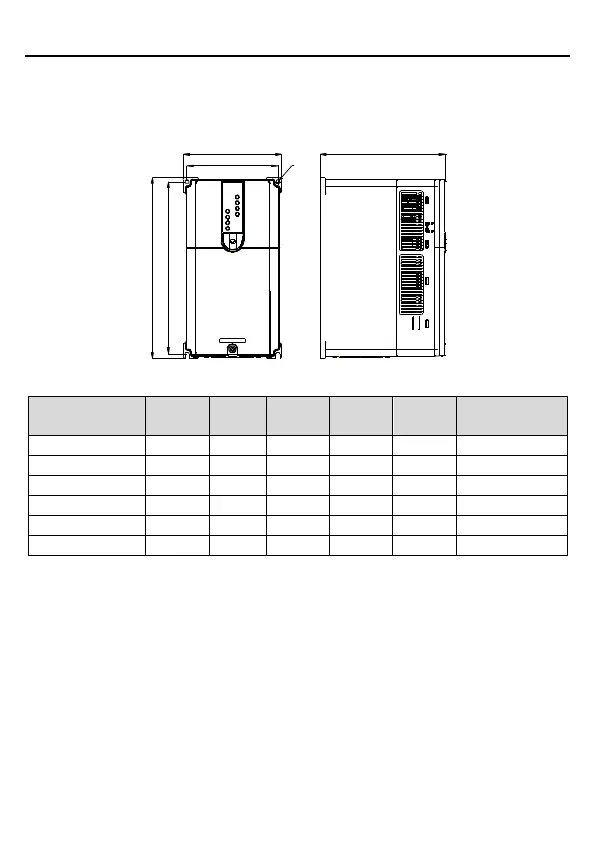

Figure B.1 Wall mounting drawing
VFD model
W1
W2
H1
H2
D1
Hole diameter
(d)
GD18-0R7-4-2
107.5
97
195.3
184
164.5
5
GD18-1R5-4-2
107.5
97
195.5
184
164.5
5
GD18-2R2-4-2
138
127
224
211
190
5
GD18-004-4-2
138
127
224
211
190
5
GD18-5R5-4-2
155
143
285
271
196.2
6
GD18-7R5-4-2
155
143
285
271
196.2
6
