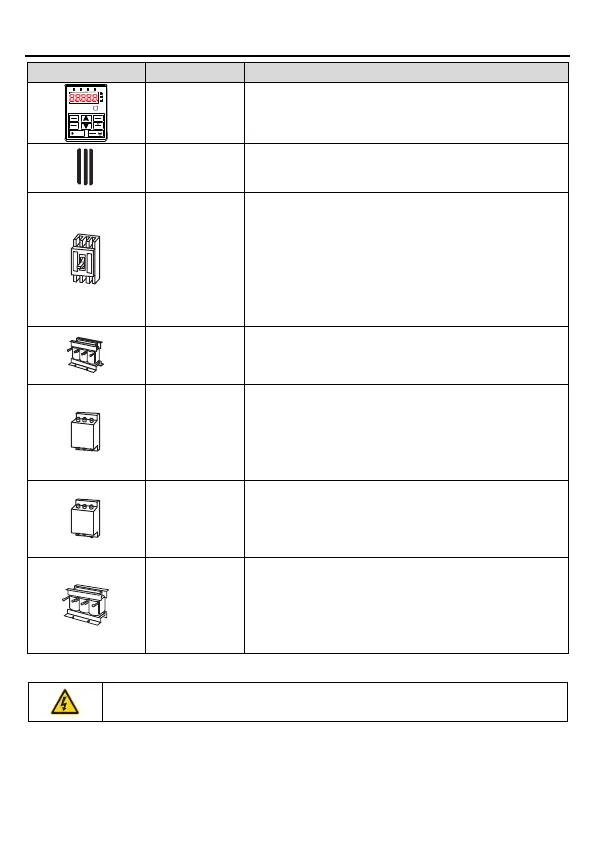

Goodrive18 series two-in-one VFD Optional peripheral accessories
-145-
Item
Name
Description
PRG
ESC
DATA
ENT
QUICK
JOG
SHIFT
RUN
STOP
RST
RUN/TUNE FWD/REV LOCAL/REMOT TRIP
Hz
A
V
RPM
%
External
keypad
The external keypads include keypads with and
without parameter copying.
Cable
Accessory for signal transmission.
Breaker
Accessory for electric shock prevention and
protection against short-to-ground that may cause
current leakage and fire. Select residual-current
circuit breakers (RCCBs) that are applicable to VFDs
and can restrict high-order harmonics, and of which
the rated sensitive current for one VFD is larger than
30 mA.
Input reactor
Accessory used to improve the current adjustment
coefficient on the input side of the VFD, and thus
restrict high-order harmonic currents.
Input filter
Accessory that restricts the electromagnetic
interference generated by the VFD and transmitted
to the public grid through the power cable. Try to
install the input filter near the input terminal side of
the VFD.
Output filter
Accessory used to restrict interference generated in
the wiring area on the output side of the VFD. Try to
install the output filter near the output terminal side of
the VFD.
Output
reactor
Accessory used to lengthen the valid transmission
distance of the VFD, which effectively restricts the
transient high voltage generated during the
switch-on and switch-off of the IGBT module of the
VFD.
C.2 Power supply
 Ensure that the voltage class of the VFD is consistent with that of the
grid.
