INVT Goodrive18 Series User Manual

Goodrive18 series two-in-one VFD Product overview
-8-
Function
Specifications
Altitude
When the altitude is higher than 1000m but lower than 3000m,
derate 1% for every increase of 100m.
When the altitude is higher than 2000m, configure an isolation
transformer at the VFD input end.
When the altitude is higher than 3000m but lower than 5000m,
consult INVT for technical issues.
It is not recommended that the VFD be used at the altitude
higher than 5000m.
IP rating
IP20
Pollution
class
Class 2
Safety
requirement
Compliant with CE requirements
Cooling
method
Forced air cooling

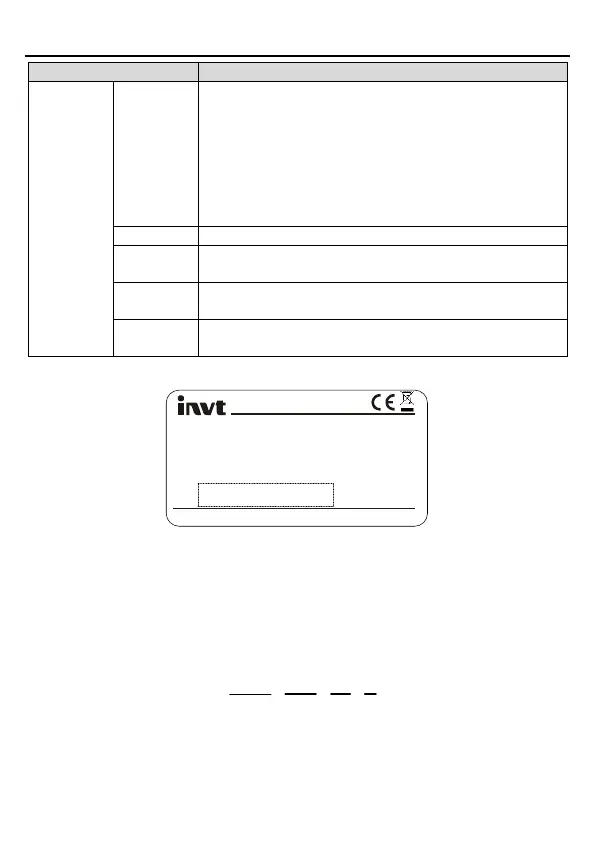

2.3 Product nameplate
IP20
Model: GD18-7R5-4-2
Power(Output1/2): 7.5kW/7.5kW
Input: AC 3PH 380V(-15%)-440V(+10%) 40A 47Hz-63Hz
Output1: AC 3PH 0-Uinput 18.5A 0Hz-400Hz
S/N: Made in China
Shenzhen INVT Electric Co.,Ltd
Output2: AC 3PH 0-Uinput 18.5A 0Hz-400Hz
Figure 2.1 Product nameplate
Note: This is a nameplate example for a standard Goodrive18 series two-in-one VFD model.
The mark such as CE/TUV/IP20 will be applied according to the actual certification situation.
2.4 Model designation code
A model designation code contains product information. You can find the model designation
code on the VFD nameplate and simplified nameplate.
GD18–7R5–
① ② ③ ④
4 2
–
Figure 2.2 Model designation code
