INVT Goodrive18 Series User Manual

Goodrive18 series two-in-one VFD Communication
-137-
If the operation is successful, the following response is returned (same as the command sent
from the master):
Parameters
address
VFD
address
Write
command
CRC check Forward running
ASCII mode

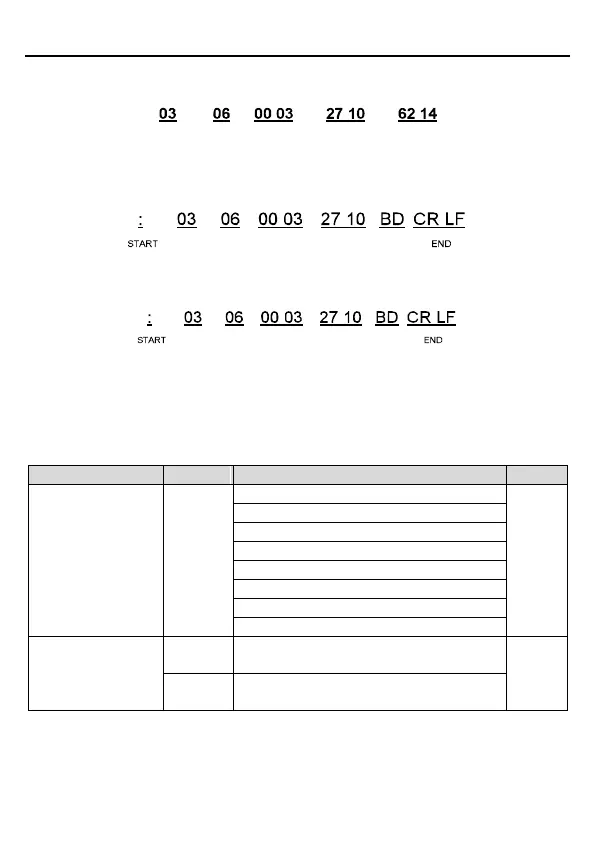

The command sent from the master is as follows:
VFD
address
Write
command
Parameters
address
Data
number
LRC
check
If the operation is successful, the following response is returned (same as the command sent
from the master):
VFD
address
Write
command
Parameters
address
Data
number
LRC
check
7.5.3 Example of continuous writing command 10H
Example 1: Make the VFD whose address is 01H run forward at 10Hz. According to the table
of address description of other function codes, the parameter address of
"communication-based control command" is 2000H and forward running is 0001. The address
of "Communication-set frequency" is 2001H and 10Hz corresponds to 03E8H.
Function
Address
Description
R/W
Communication-based
control command
2000H
0001H: forward running
R/W
0002H: reverse running
0003H: forward jogging
0004H: reverse jogging
0005H: stop
0006H: coast to stop (emergency stop)
0007H: fault reset
0008H: jogging stop
Communication-based
setting address
2001H
Communication-set frequency (0–Fmax, unit:
0.01Hz)
R/W
2002H
PID reference, range (0–1000, 1000
corresponds to 100.0%)
RTU mode
