Goodrive18 series two-in-one VFD Operating

-27-

All digits are

blinking.

The units place

is blinking.

DATA

ENT

DATA

ENT

DATA

ENT

PRG

ESC

PRG

ESC

PRG

ESC

PRG

ESC

The units place is blinking.

Note: When setting the value, you can press and + to modify the value.

SHIFT

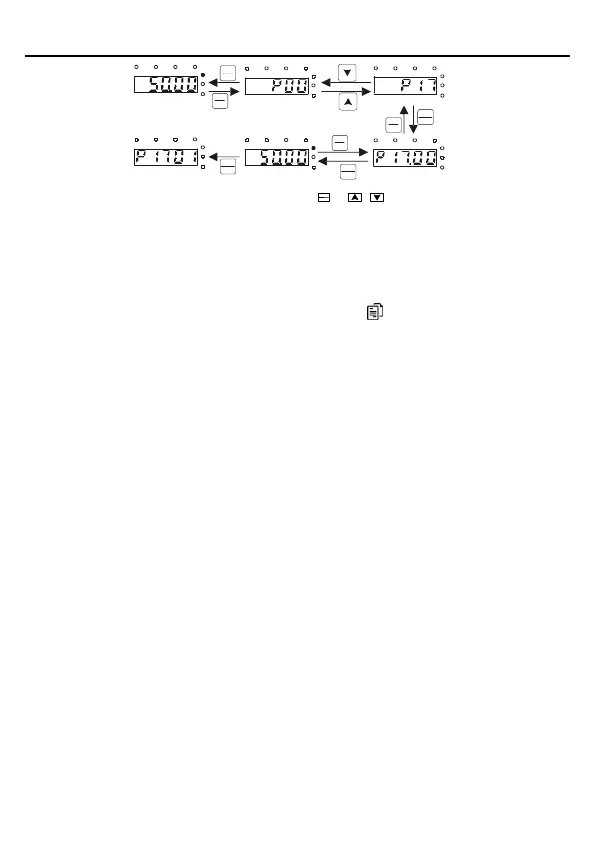

Figure 4.6 Viewing parameter setting

4.3.5 How to copy function parameters

The external keypad for operating Goodrive18 series two-in-one VFD supports common

parameter copying and embedded parameter copying. The embedded parameter copying

function means that the keypad housing contains the icon and parameters can be

uploaded and downloaded after P07.01 is set. A common keypad does not have this icon.

Before using the parameter copying function, copy local function parameters to the EEPROM

of the keypad. Then the parameters can be downloaded to another VFD.

To upload parameters, set P07.01 to 1, and press DATA. The keypad displays "-UP--" in

blinking way, indicating the VFD parameters are being uploaded to the keypad. After the

upload is completed, the keypad displays P07.01.

To download parameters:

If all function parameters need to be downloaded, set P07.01 to 2 and press DATA. The

keypad displays "-dn1-" in blinking way, indicating the parameters saved on the keypad are

being downloaded to the VFD. After the upload is completed, the keypad displays P07.01.

If function parameters excluding parameters in P02 and P12 need to be downloaded or only

parameters in P02 and P12 need to be downloaded, set P07.01 to 3 or 4. The keypad displays

"-dn2-" or "-dn3-" in blinking way.
