INVT Goodrive18 Series User Manual

Goodrive18 series two-in-one VFD Operating
-22-
1
2
4
3
5
PRG
ESC
DATA
ENT
QUICK
JOG
SHIFT
RUN
STOP
RST
RUN/TUNE FWD/REV LOCAL/REMOT TRIP
Hz
A
V
RPM
%

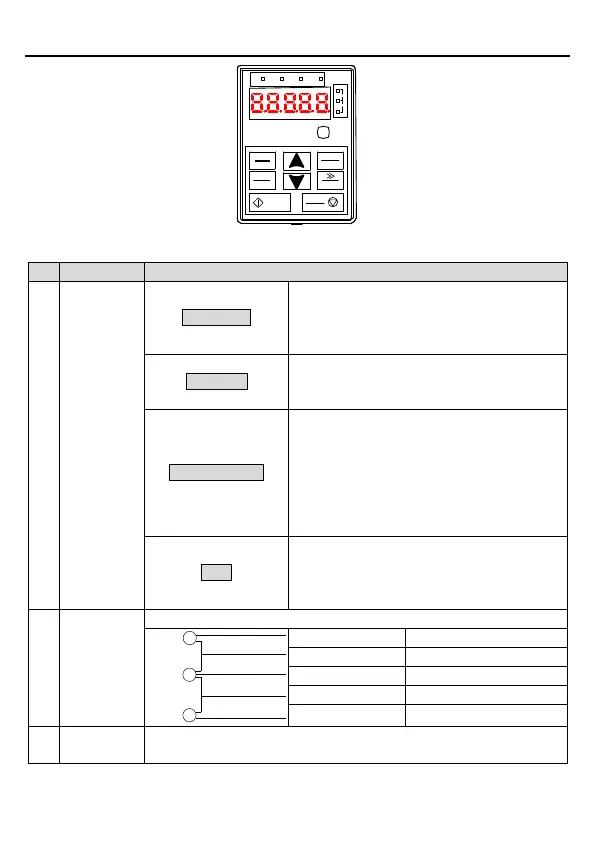

Figure 4.2 External keypad diagram
No.
Item
Description
1
Status
indicator
RUN/TUNE
VFD running status indicator.
On: The VFD is running.
Off: The VFD is stopped.
Blinking: The VFD is autotuning parameters.
FWD/REV
Forward or reverse running indicator.
On: The VFD is running reversely.
Off: The VFD is running forward.
LOCAL/REMOT
Indicates whether the VFD is controlled through
the keypad, terminals, or communication.
On: The VFD is controlled through remote
communication.
Off: The VFD is controlled through the keypad.
Blinking: The VFD is controlled through
terminals.
TRIP
Fault indicator.
On: in fault state
Off: in normal state
Blinking: in pre-alarm state
2
Unit indicator
Unit displayed currently
Hz
Frequency unit
RPM
Rotational speed unit
A
Current unit
%
Percentage
V
Voltage unit
3
Digital
display zone
Five-digit LED displays various monitoring data and alarm codes such as
the set frequency and output frequency.
