INVT SV-DA200 User Manual

SV-DA200 series AC servo drives Faults and solutions
‐151‐

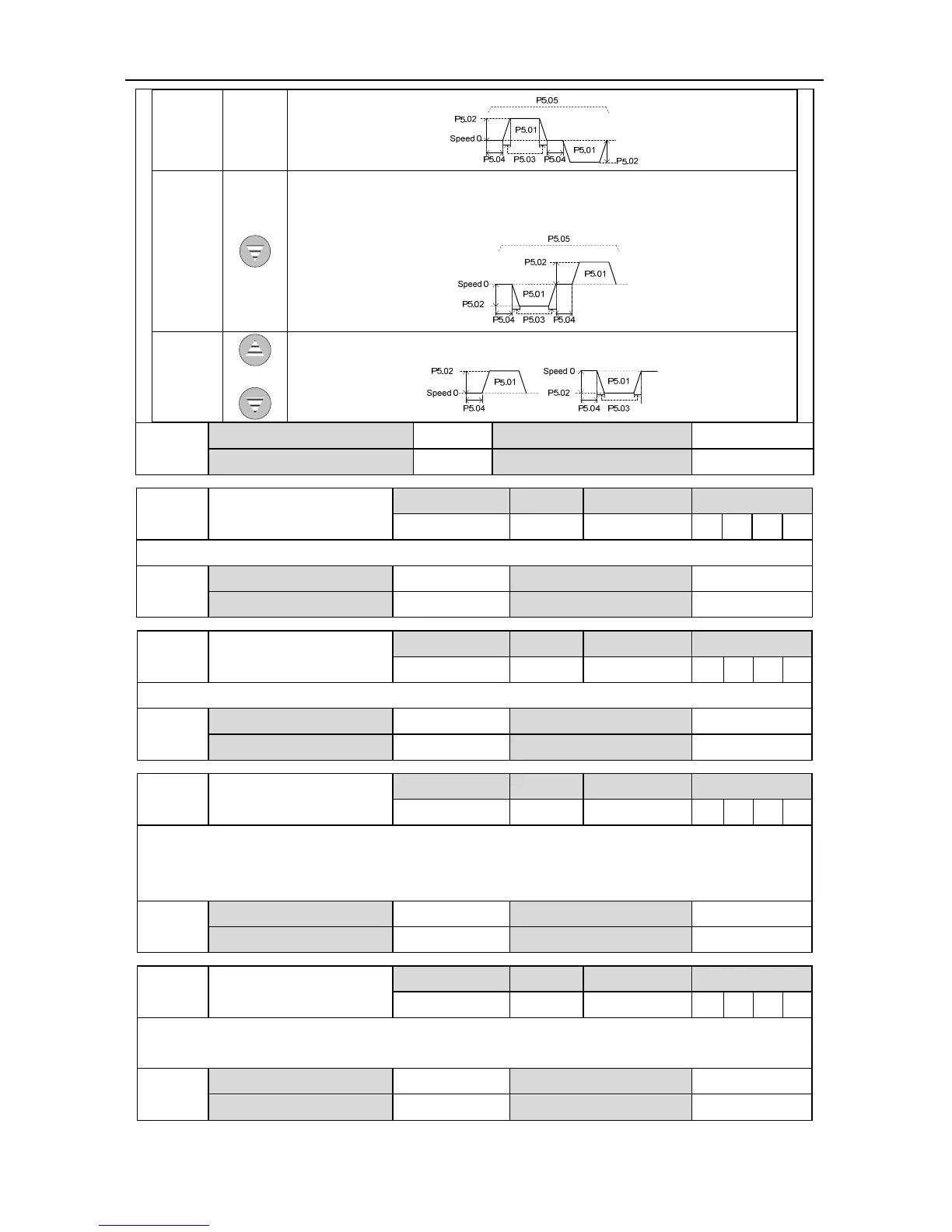

5
(waiting time P5.04→reverse moving P5.01→waiting time P5.04→forward
moving P5.01) × cycle time P5.05
6
Or
(waiting time P5.04→forward or reverse moving P5.01) × cycle 1 time
P5.00
Data size 16bit Data format DEC
Modbus address 2000,2001 CANopen address 0x2500,0x00
P5.01 JOG movement amount
Setting range Default Unit Available mode
1~2
30
50000 reference unit P
This parameter is used to set the increment of position movement amount of JOG.
P5.01
Data size 32bit Data format DEC
Modbus address 2002,2003 CANopen address 0x2501,0x00
P5.02 JOG speed setting
Setting range Default Unit Available mode
1~5000 500 r/min P
This parameter is used to set the highest running speed of JOG.
P5.02
Data size 16bit Data format DEC
Modbus address 2004,2005 CANopen address 0x2502,0x00
P5.03 JOG ACC/DEC time
Setting range Default Unit Available mode
2~10000 100 ms P
This parameter is used to set the JOG ACC/DEC time and the time corresponds to the time from
zero speed to the rated speed. For example, if the target speed is from zero speed to 50% of the
rated speed, it is 50% of the time to the target speed.
P5.03
Data size 16bit Data format DEC
Modbus address 2006,2007 CANopen address 0x2503,0x00
P5.04 JOG waiting time
Setting range Default Unit Available mode
0~10000 100 ms P
This parameter is used to set JOG waiting time and the time is from JOG starting to actual operation
time or the time from the finishing of one displacement to the starting of next displacement.
P5.04
Data size 16bit Data format DEC
Modbus address 2008,2009 CANopen address 0x2504,0x00
