INVT XD Series User Manual

Single Phase Hybrid Inverter Installation
12

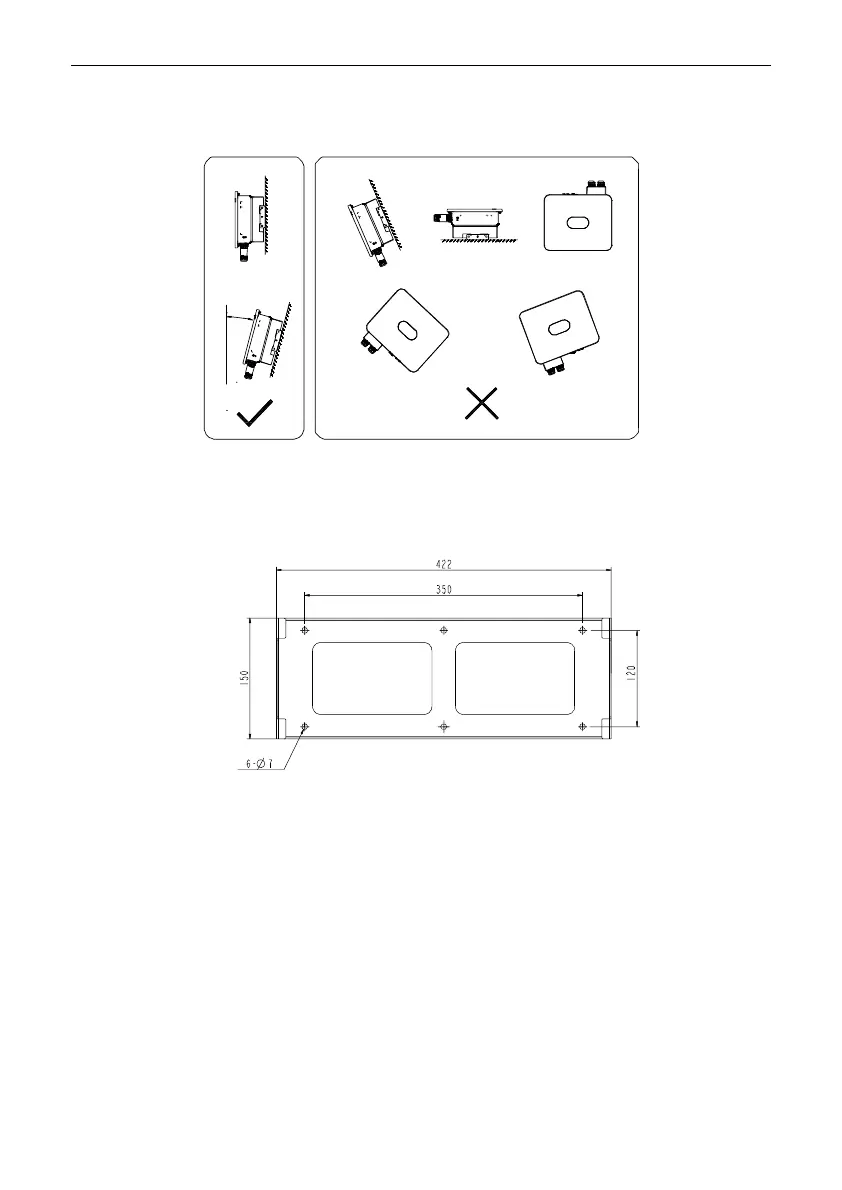

tilt of ≤15° so as to facilitate heat radiation. Forward tilt, horizontal installation, upside-down installation,
backward tilt of >15° and sideways tilt are not allowed.
≤15°
Fig. 4.6 Installation Location of Inverter
4.4 Dimension of Mounting Bracket
Fig. 4.7 Dimension of Mounting Bracket
