Single Phase Hybrid Inverter Electrical Connection
24
5.8 Connection of Grounding Wire
The hybrid inverter should be grounded reliably. The grounding wire should be ≥10mm². The grounding point

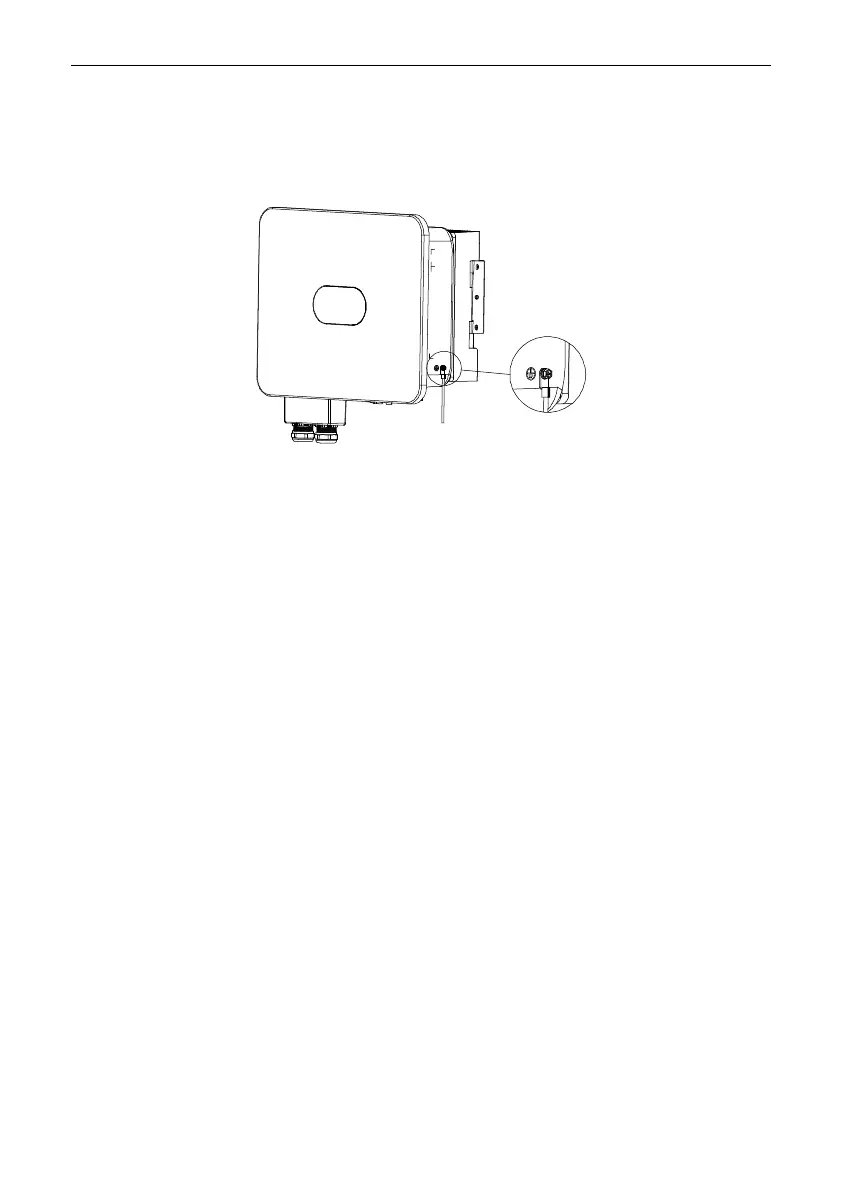

(GND) is shown below.
