Single Phase Hybrid Inverter Product Introduction
6
strap or anti-static clothing so as to protect the inverter against electrostatic discharge.
6. All electrical connections must comply with the safety regulations of the local power provider.
7. For system maintenance service, please contact our local authorized service personnel or our after-sales
personnel.
8. The hybrid inverter system should be connected to the power grid after getting permission.
9. Turn off the PV switch before installing a solar PV panel during the sunny daytime, or there could be a serious
risk of electric shock.
10. Do not connect a PV string to more than one inverter, as this could cause damage to the inverters.

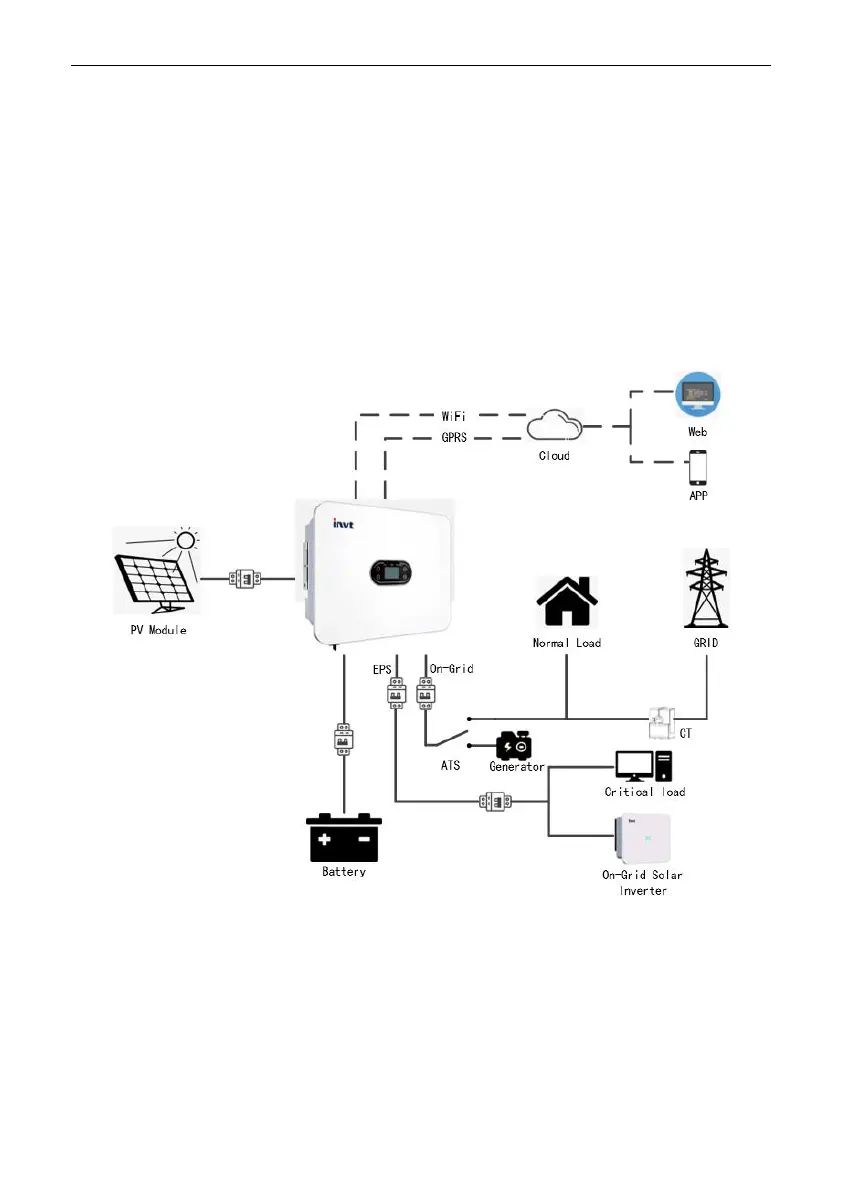

3.4 Schematic Diagram of the Basic System
As shown in the above diagram, a complete hybrid inverter system in XD series consists mainly of the solar PV
panels, hybrid inverter, battery and power grid.
Note: The battery is an integral part of the hybrid inverter system. Please keep the installation environment well-
ventilated and take necessary measures to control the ambient temperature, so as to prevent the risk of explosion
caused by high temperature.
Battery characteristics:
Ingress protection: ≥IP65; pollution degree: PD2; indoor temperature: 0℃~40℃; RH: 5%~85%
