INVT XD Series User Manual

Single Phase Hybrid Inverter System Debugging
54
8.1.2 LEDs, Screen and Keys

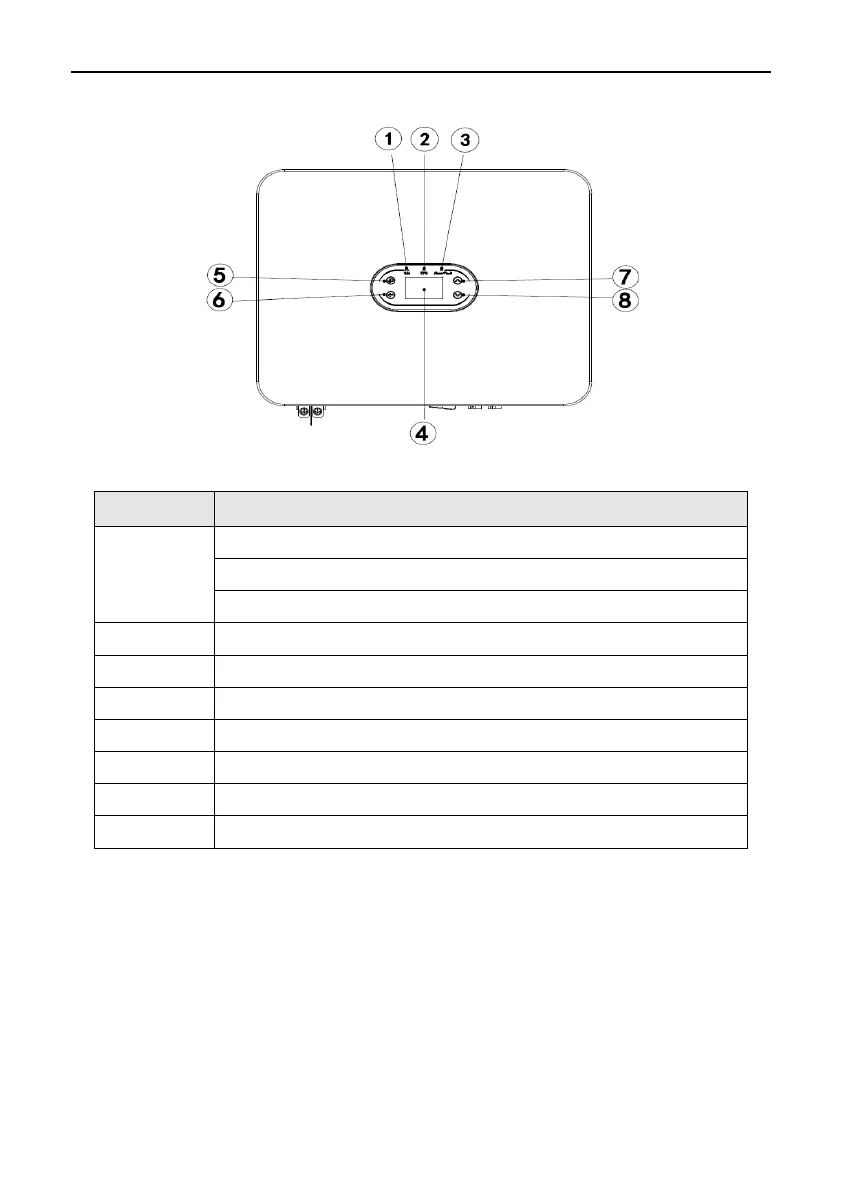

Fig. 8-2
Position
Description
1
Green LED remaining on: in the on-grid state.
Green LED flashing: during the power-on self-test.
Green and yellow LED flashing: during the program burning process.
2
Yellow LED remaining on: in the off-grid state.
3
Red LED remaining on: in the fault state.
4
LCD screen
5
Return key
6
Enter key
7
Up key
8
Down key
8.2 Working Mode
8.2.1 Normal Mode
In normal mode, the inverter may work in on-grid state or off-grid state.
On-grid State
When the hybrid inverter works in on-grid state, you can select a priority mode as needed. On the LCD screen,
you can only set one period for each priority mode; while on the App, you can set up to three periods for each priority
mode.
1. Load First: This is the default priority mode. When the system works in this mode, the PV energy will
