nano3G AP Installation Manual Installation Overview and Requirements
N3G_INST_300 v8.1 for N3G_2.0.5 © ip.access Limited 2011 Page 10
Power Adapter
A suitable mains power supply point into which the power adapter for the AP can be
plugged.
Only use the power adapter supplied by ip.access to power the AP:
Power over Ethernet
POE requires the use of a power inserter and a splitter. The power inserter is positioned
close to the backhaul network connection and mains supply, while the splitter is positioned
close to the AP.

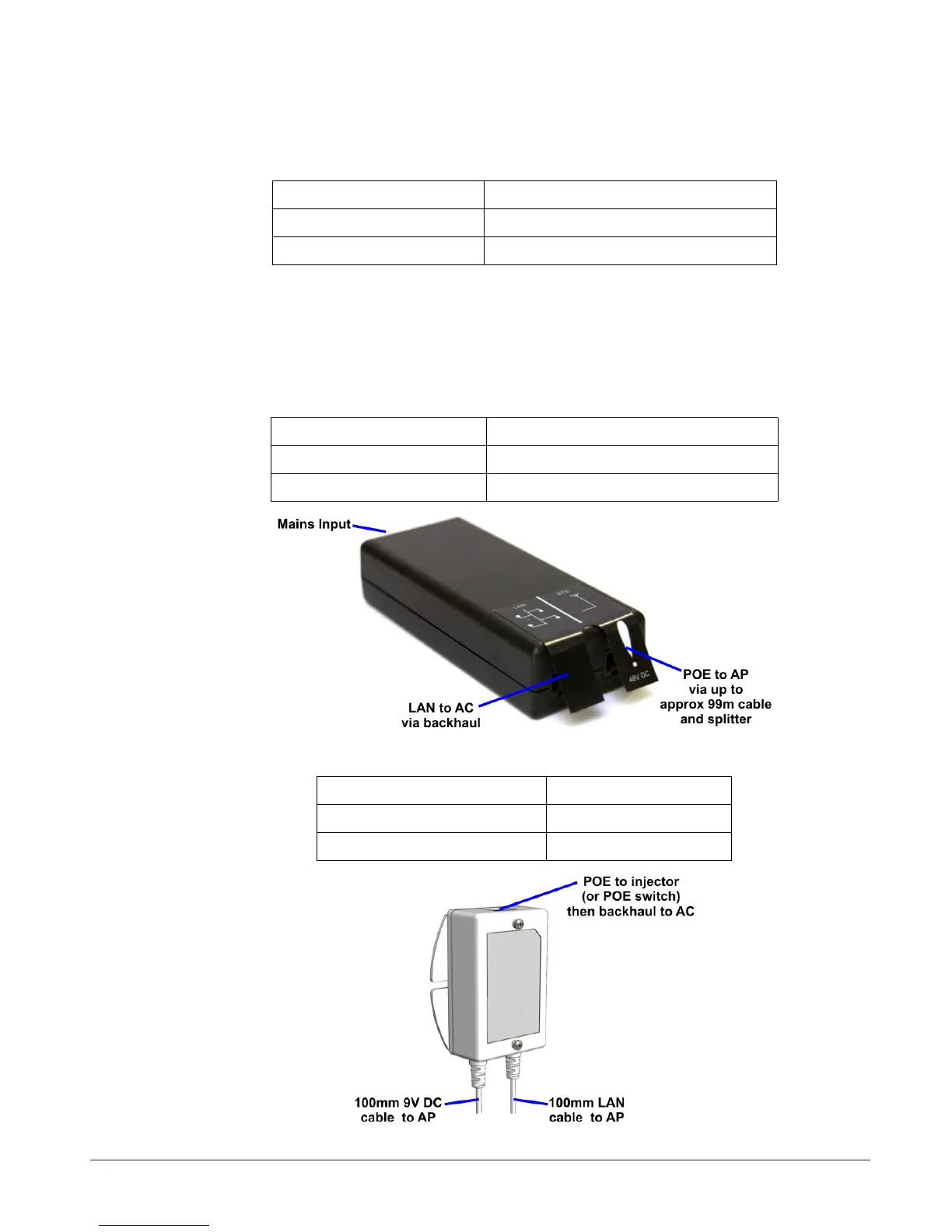

This is the POE inserter supplied by ip.access:
Only use the POE splitter supplied by ip.access:
ip.access part number EPS1173R
Input 100-240V ~ 50/60Hz 0.7A
Output +9VDC 1.67A
ip.access part number 109A
Input 100/230V ~ 60/50Hz 0.5/0.25A
Output 48VDC 0.38A
ip.access part number 222A
Input 48VDC 0.35A
Output 9VDC 1.33A
