nano3G AP Installation Manual Pre-Provisioning a nano3G AP
N3G_INST_300 v8.1 for N3G_2.0.5 © ip.access Limited 2011 Page 19
3.1.2 Optional - Use an Existing AP Configuration

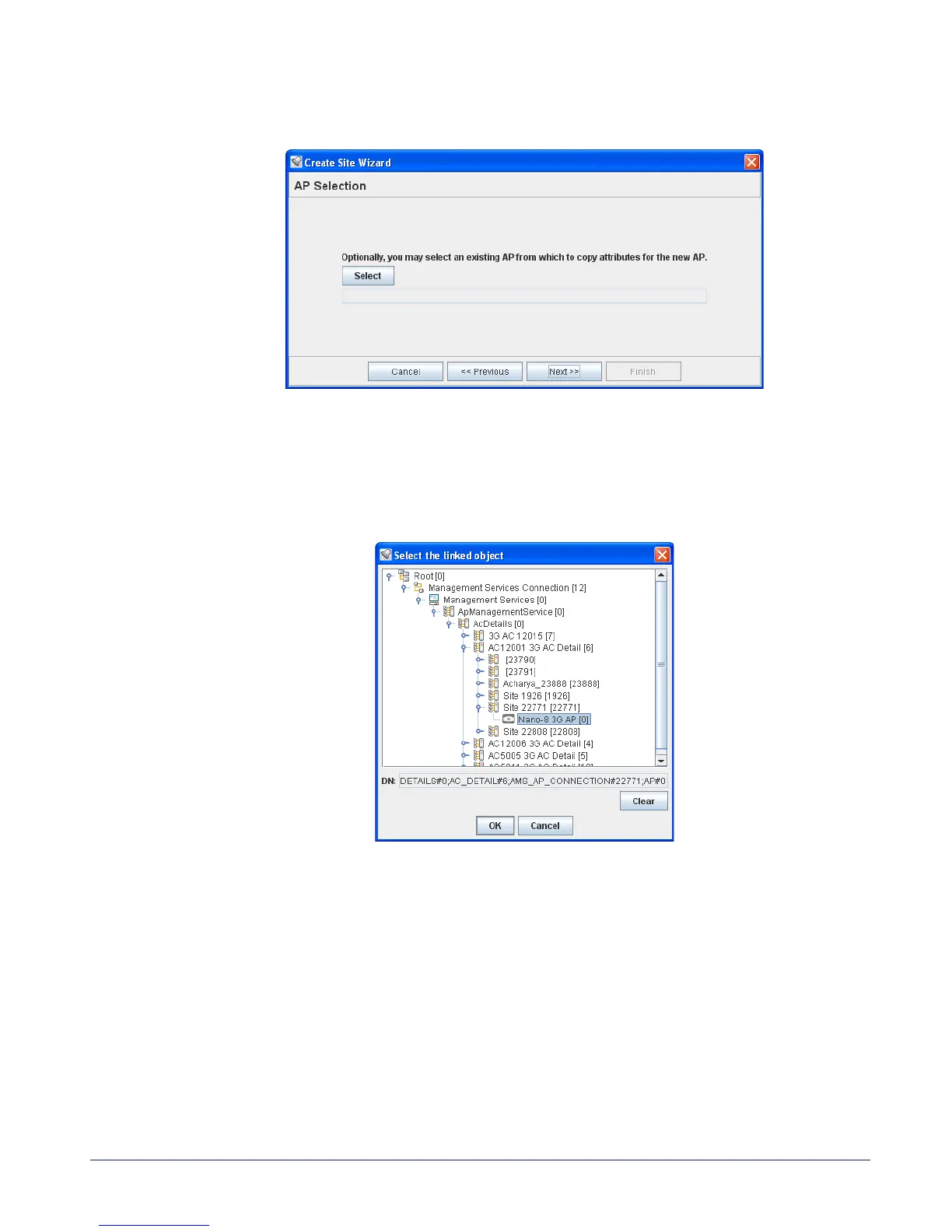

5) Click Next and the AP Selection page of the wizard will appear:
Optionally use this page to copy the configuration of an existing AP.
6) To copy the configuration from an existing AP, click the Select button. The Select
linked object browser will appear, initially showing the Root object in the OMC-R
object hierarchy. When this is expanded, only Management Services that have
APs configured will be shown. Drill down to find the required AP. For example:
The DN box will show the Distinguished Name for the selected AP. This uniquely
identifies the AP object within the object hierarchy on this OMC-R. The AP object
must be the same type of AP object as has been selected for the new site.
Click OK and the DN will be shown on the AP Selection page of the wizard.
