nano3G AP Installation Manual Installation Overview and Requirements
N3G_INST_300 v8.1 for N3G_2.0.5 © ip.access Limited 2011 Page 9
2.3 nano3G S4 AP Site Requirements
The nano3G S4 APs are typically installed in retail or small office environments. In
summary, each AP will require:
• Power supplied in one of the following ways:
• From the mains adaptor unit supplied with the AP, which requires a suitable
mains power supply point near the AP that is within reach of the adaptor’s
cabling
or
• From the supplied POE splitter, which requires a Power over Ethernet
connection to the splitter
• A site for the AP:
• Wall mount location
or
• Stable surface for free standing installation
2.3.1 nano3G S4 AP Power Requirements
Maximum expected power consumption:
• 13 Watts (Rated 9VDC 1450mA)

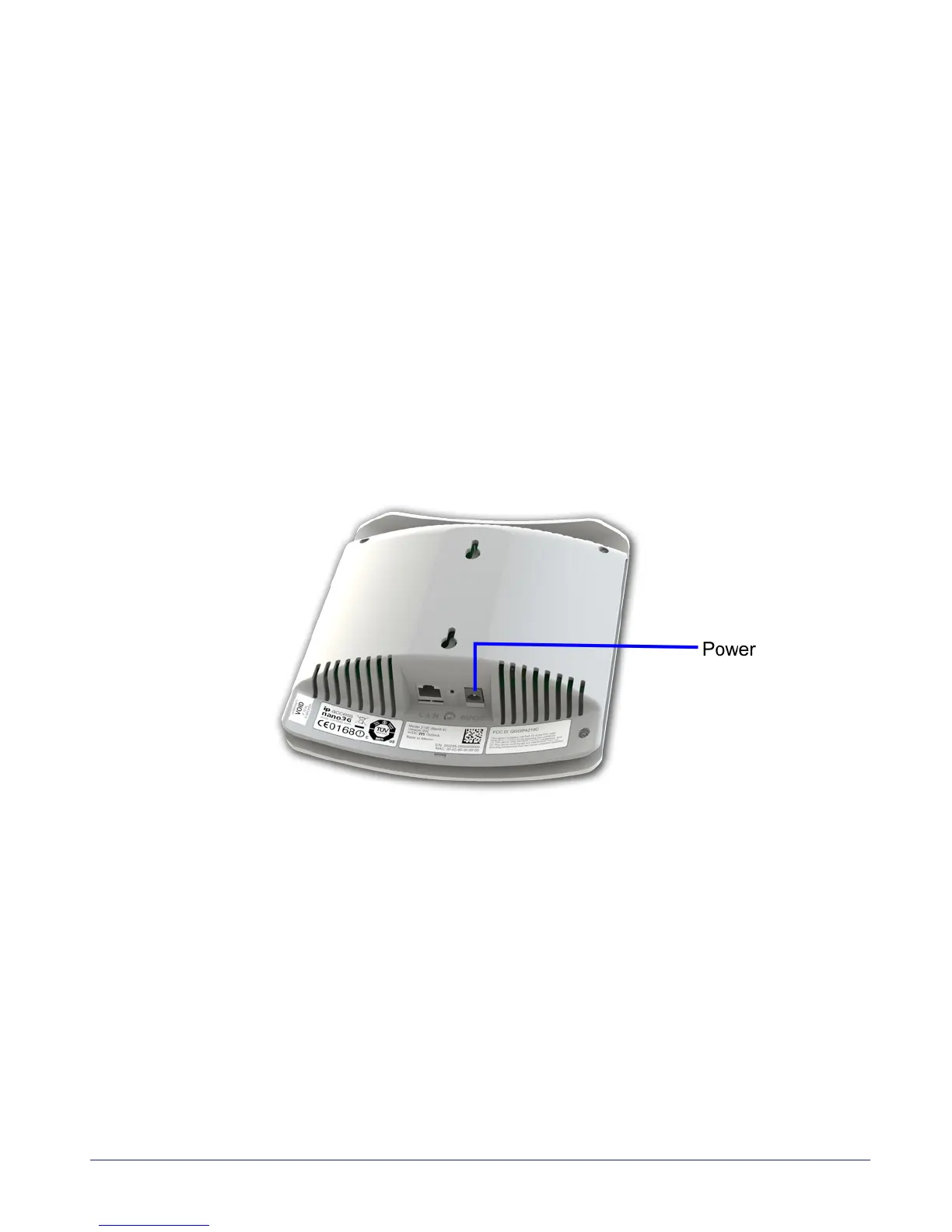

The nano3G S4 AP supports the following power and Ethernet cabling options:
• Direct power from the supplied power adapter
• Power over Ethernet from the supplied POE injector, via the supplied POE splitter
• Power over Ethernet from a POE switch, via the supplied POE splitter
A POE cable must not be inserted directly into the AP.
The power adapter, as well as the POE inserter and splitter supplied by ip.access comply
with LPS requirements in accordance with IEC/EN 60950-1.
