6.4.6 Mount the nano3G E8 AP on a Wall
Note: The nano3G E8 AP should be installed in a position so that it is at least 2m away from the
area where handsets are normally used.
The nano3G E8 AP must be mounted vertically to ensure air circulation around the unit.
The location of each nano3G E8 AP is shown on the installation floor plan produced at the
network planning stage. For example, it must take into account that all APs must be at least
2m from any mobile equipment. The network wiring must be complete before the nano3G
E8 AP can be installed and commissioned. The nano3G E8 AP should be placed on a wall
at or above head height.

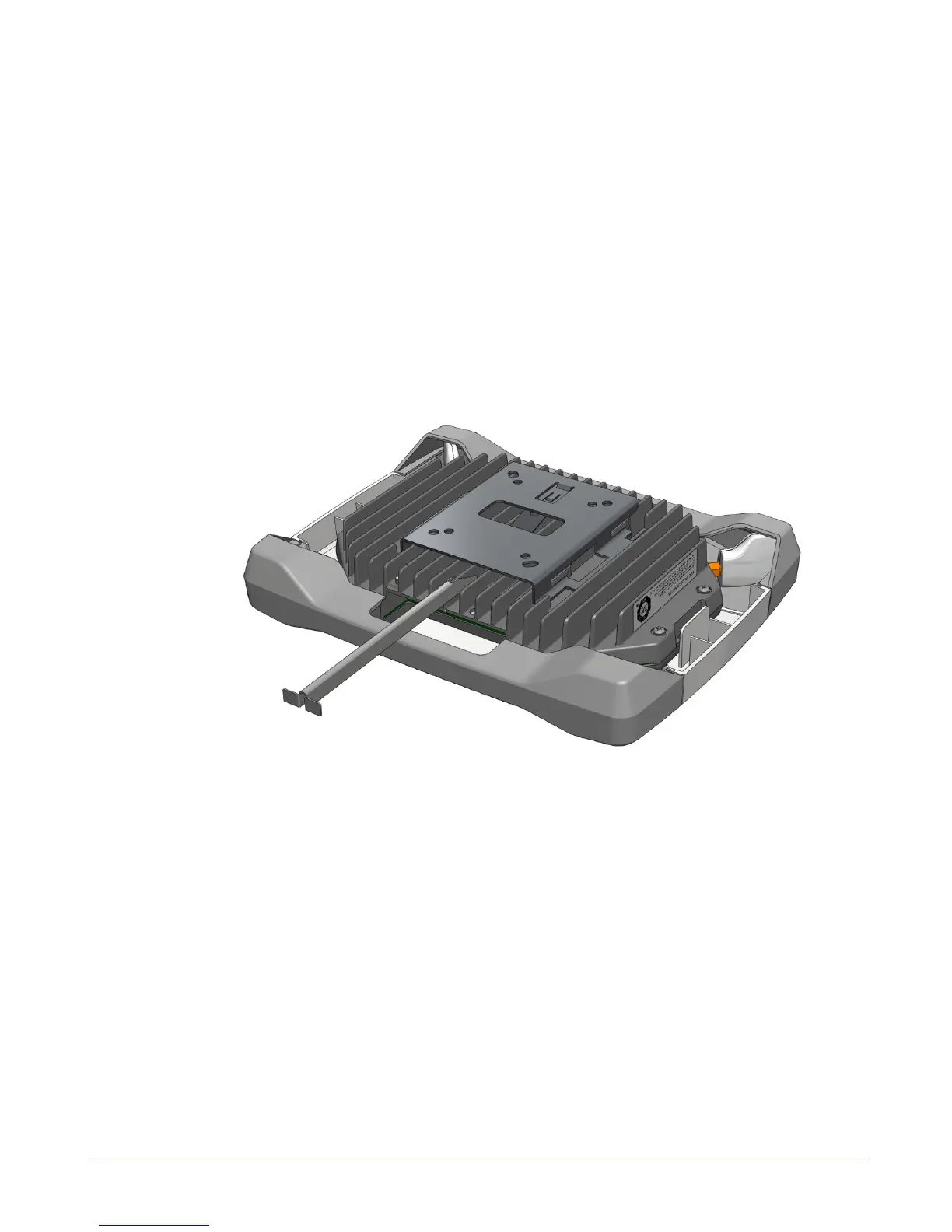

1) Remove the nano3G E8 AP from the wall bracket. Lay the AP on a flat surface with
the wall bracket upwards. Slide the removal tool over the central fin between the
bracket and the body of the unit to disengage the locking spring, then slide the
bracket to separate it from the AP. The removal tool may be inserted from the top
or bottom of the nano3G E8 AP.
