nano3G AP Installation Manual Installation Overview and Requirements
N3G_INST_300 v8.1 for N3G_2.0.5 © ip.access Limited 2011 Page 15
2.5 nano3G E8 AP Site Requirements
In addition to the site requirements for all APs, each E8 AP will require:
• A site for wall mounting
• Power supplied in one of the following ways:
• From the supplied POE injector, which requires a suitable mains power
supply point near the injector - the AP must be within reach of a 100m
Ethernet cable
or
• From a mains adaptor unit, supplied separately, which requires a suitable
mains power supply point near the AP that is within reach of the adaptor’s
cabling
2.5.1 nano3G E8 AP Power Requirements
Maximum expected power consumption:
• 20 Watts (Rated +12V or -48V DC)
The nano3G E8 AP supports the following power options:
• Power over Ethernet from a IEEE 802.3at compliant POE+ power source
equipment - a suitable POE+ inserter is supplied with the AP
• Direct power from a suitable DC source (+12V, 2.5A rated centre positive 2.1mm
jack) - a suitable mains adaptor is available separately
These power options are mutually exclusive. When POE+ is used, a DC power adapter
must not be plugged in to the AP and vice versa.
The nano3G E8 AP can be used with any IEEE 802.3at compliant POE+ power source.

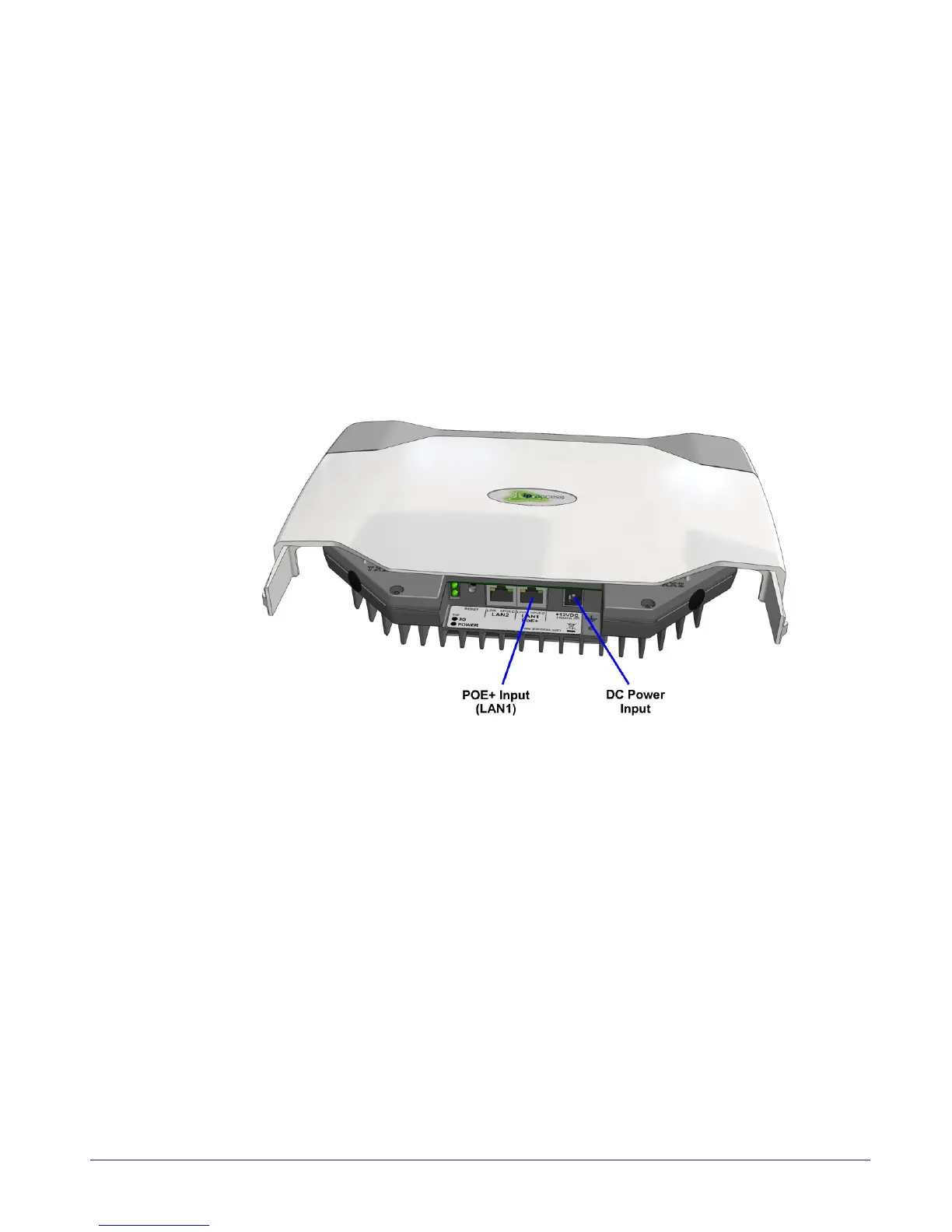

Note: The Ethernet cable carrying POE+ must be plugged into the LAN 1 port. The LAN 2 port,
next to LAN 1, is not used and does not support POE.
