nano3G AP Installation Manual Pre-Provisioning a nano3G AP
N3G_INST_300 v8.1 for N3G_2.0.5 © ip.access Limited 2011 Page 23
18) Click in the 3G AP Identity box and type a numeric ID.
3.1.5 Select NTP Servers

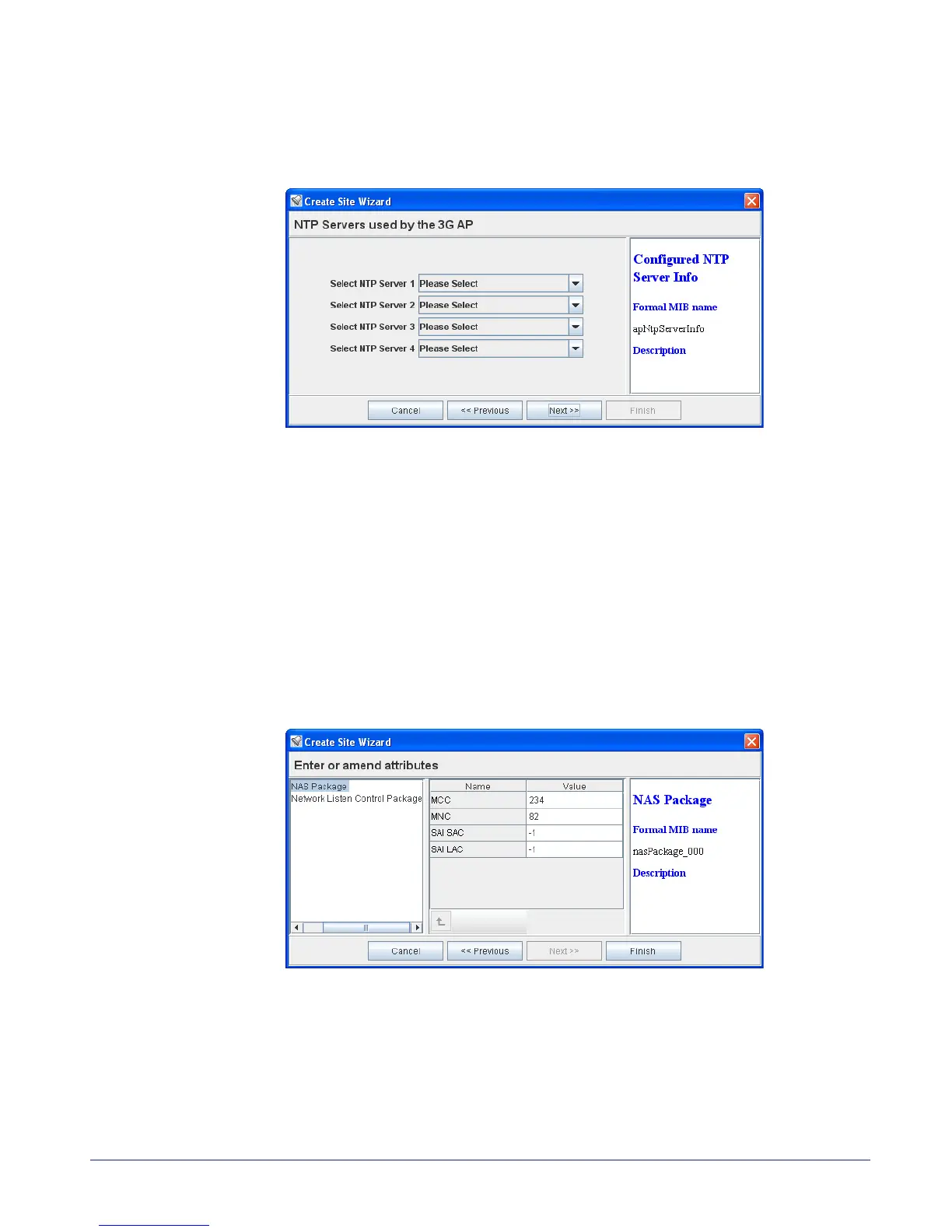

19) Click Next. The page for selecting NTP servers will appear:
20) Click the drop-down lists to choose up to four NTP servers for the AP. The
available NTP servers are defined under Root > OMCR > NTP Servers. At least
one NTP server must be selected.
3.1.6 Modify NAS and Network Listen Settings
21) Click Next. The identification details are checked to ensure there are no
duplication conflicts with existing APs. If there are any conflicts, a message will
indicate the conflict and the wizard will stay on the AP identity details page. If the
details pass these checks, the page for NAS and Network Listen details will
appear:
22) If required, change the NAS entries. In most cases, the correct values should have
already been selected automatically.
