6.4.4 Commission the nano3G E8 AP
Configure the AP so that it will connect to its serving AP Management System. If this has
not been done already, do this now, before installing the AP in its final location. For
instructions, see section 5.
6.4.5 Cable Connections
Two power supply modules are available from ip.access, designed for use with the
ip.access nano3G E8 AP and are compliant with the IEEE 802.3at standard:
• The POE+ injector, as supplied, is commonly used for single site installations
• Direct power from the mains via an optional power adapter

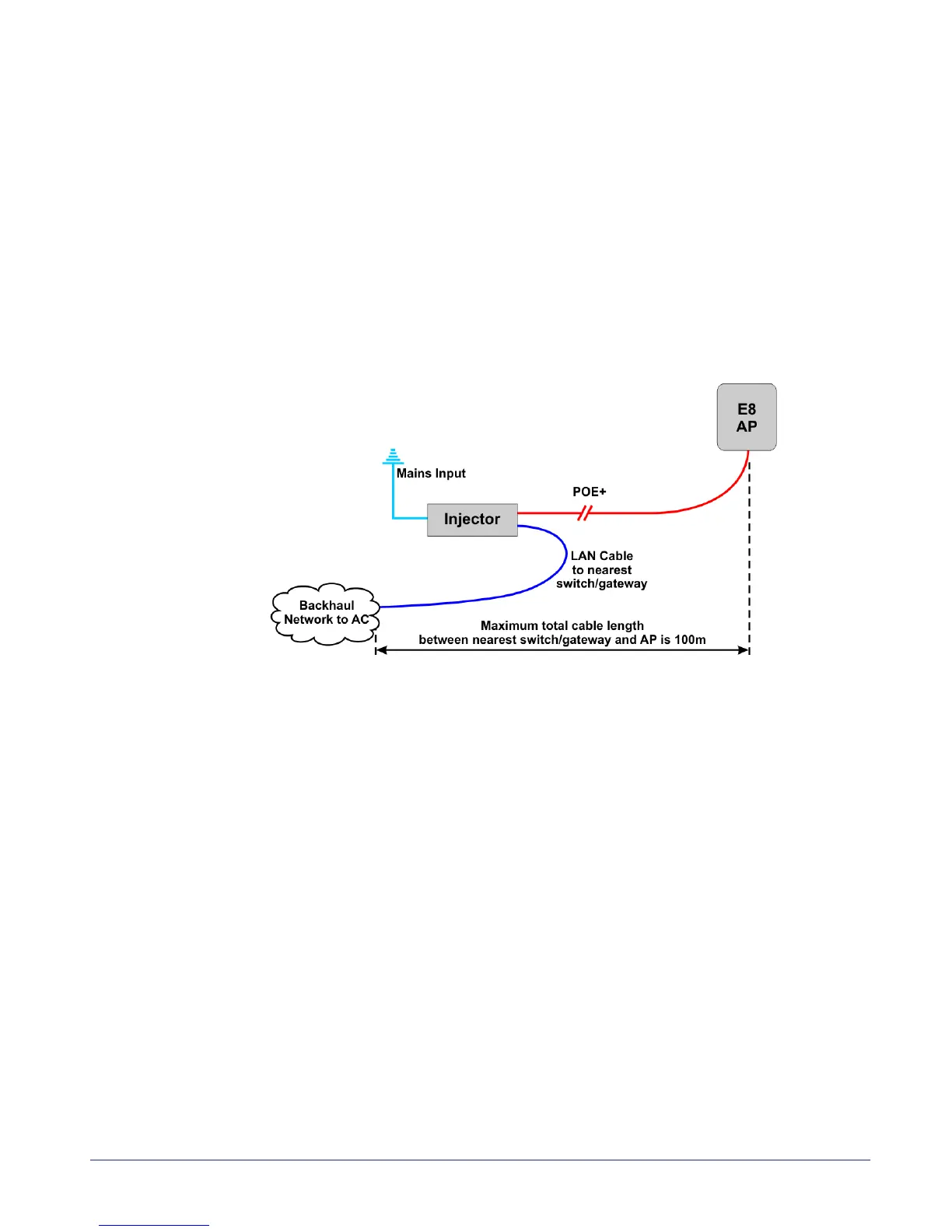

POE+ Injector
The AP can be up to 100m from the switch/gateway to the backhaul, but allow
approximately 0.1m for routing through the injector. The injector can be positioned
anywhere on this cable run. Hence the injector can be at the most convenient point for
providing power, without restricting the location of the AP.
The injector takes a direct mains input using the supplied mains cable. Use a CAT5
Ethernet cable that is capable of carrying POE from the injector to the AP.
