nano3G AP Installation Manual Commission a nano3G AP
N3G_INST_300 v8.1 for N3G_2.0.5 © ip.access Limited 2011 Page 38
5.5 Configure the Connection to the AP Management System
5.5.1 Static IP Configuration
Obtaining an IP address with DHCP is recommended for the nano3G AP, and this is
selected by default. Only execute this section if static IP configuration is needed. This must
be done before completing the Connection Config page.

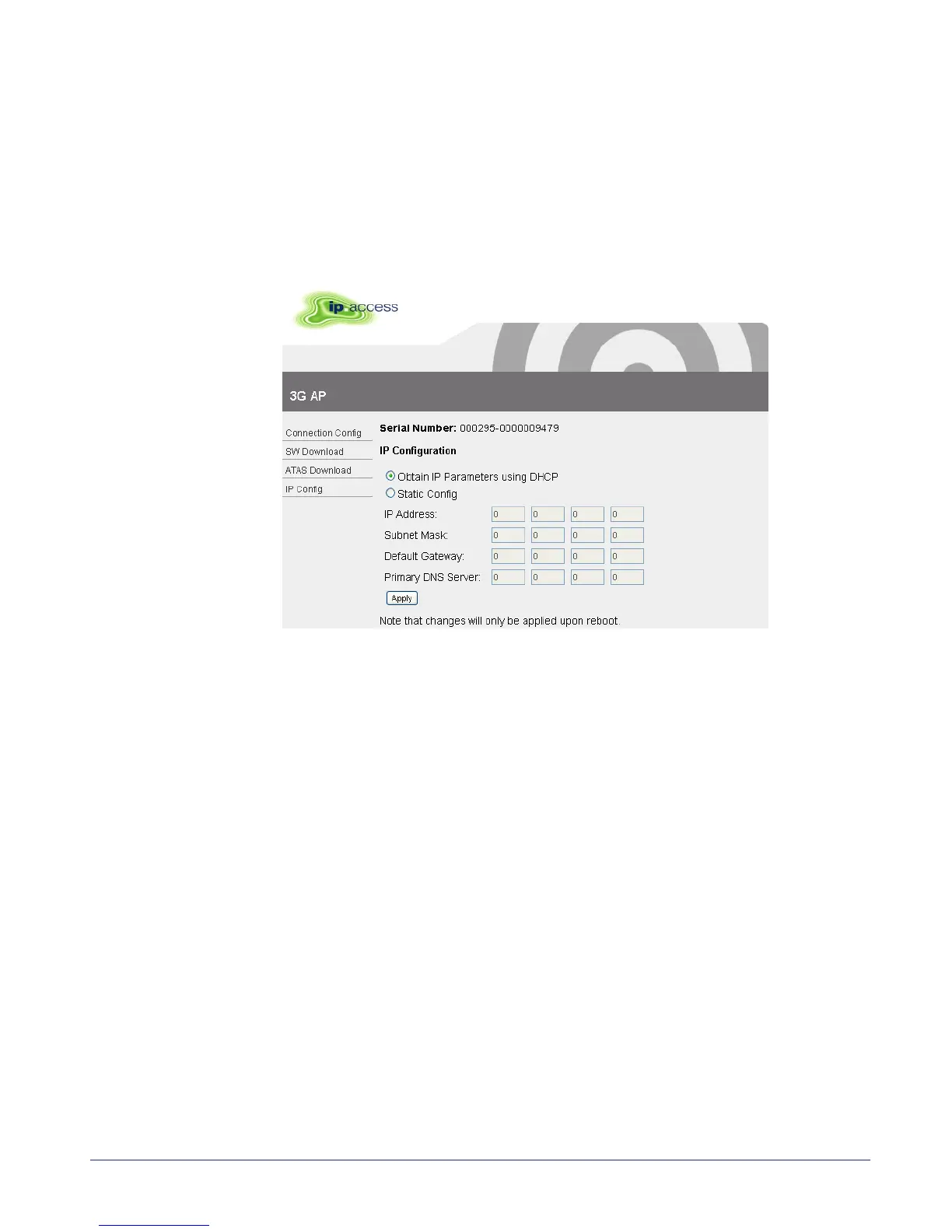

19) If static IP is required, click the IP Config link on the left. The IP Configuration page
appears.
20) Edit the parameters as needed and then click Apply.
Note: At this point it may be useful to make a separate note of the parameter
values entered in this screen. Alternatively, save a screenshot of the web
page (information about how to take a screenshot is outside the scope of
this manual).
21) Click the Connection Config link on the left.
