48

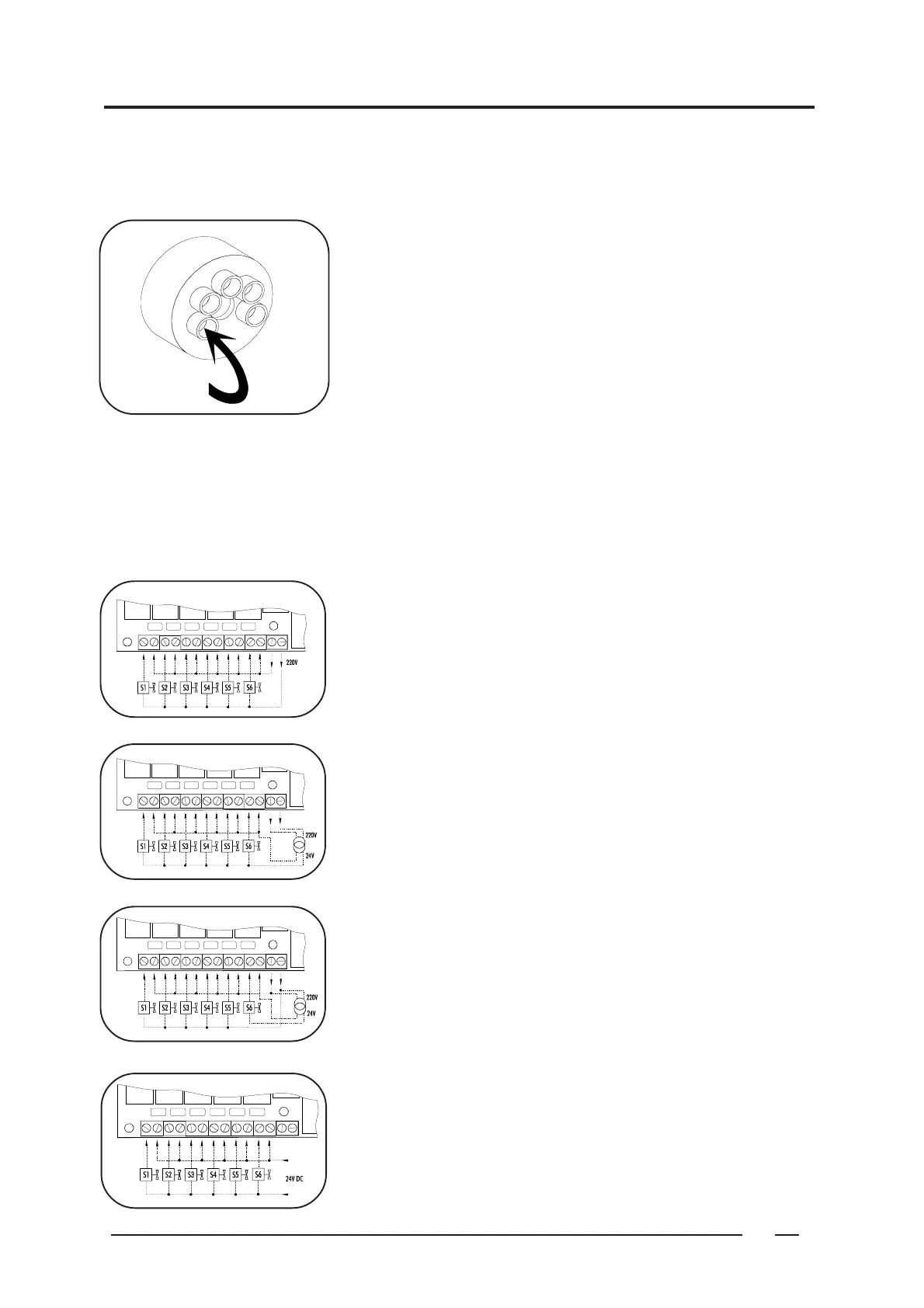

A rubber connection has been placed over the air break opening at the
back of the machine. There are 5 holes in this rubber connection,
through each of which a liquid soap hose can be driven (S1...S5).
Press the hoses until they appear well inside the soap dispenser.
The central gap in the rubber connection remains and serves as air
breaker.
Connection of the liquid
soap hoses
Electrical connection of the
liquid soap pumps
On machines equipped with a liquid soap connection, connect the wires
directly on the print board next to the ground wire connection (option).
Connect as indicated on the wiring diagram.
The two connectors on the right give a tension of 220V ~ (max. 4A)
which can be applied to drive 220V ~ soap pumps. If more than 4A
is required, an external tension will have to be used.
6 connections have been provided, of which one (S6) can be used to
drive a waterproofing pump (e.g. for rain coats, etc.).
With an external tension 24V DC
The 220V can be transformed to other values to drive other type soap
pumps.
Example: pumps 24V ~.
Also, pumps with different operating tension can be combined.
Example: 5 pumps 220V ~ and 1 pump 24V ~.
Liquid soap connection 8
