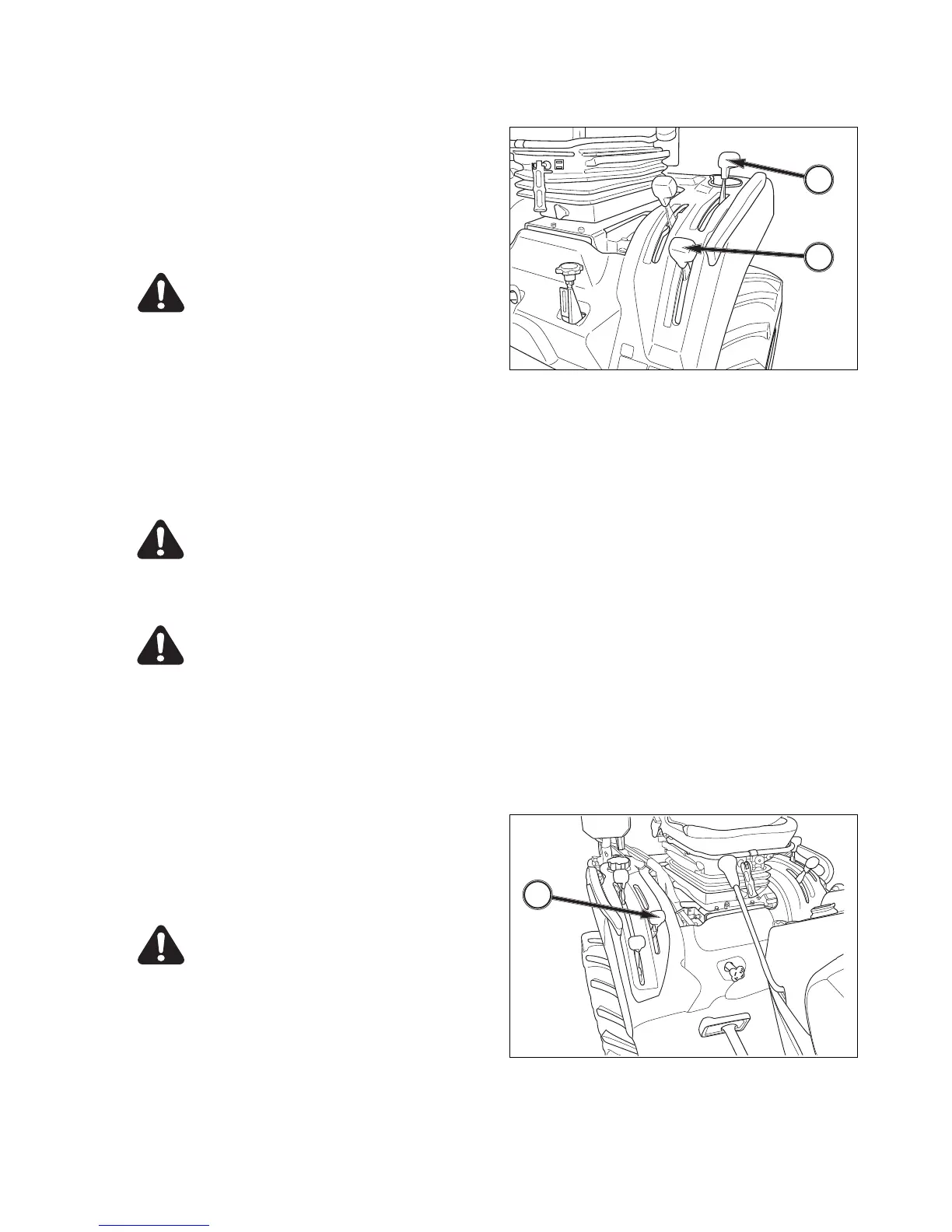

FIG. 3-18
FIG. 3-19
REAR & MID PTO SELECTOR LEVERS
FIG. 3-18: Rear PTO (Power Take-Off) selector lever,
2, controls rear PTO on Tractor.
When lever is forward, neutral position, the gear drive
is disengaged.
When lever is rearward, 540 rpm rear PTO is selected.
CAUTION: Always shut off PTO and shut
off Tractor engine before servicing PTO-
driven implement. Allow all movement
and motion to stop before leaving opera-
tor’s seat.
Mid PTO (Power Take-Off) selector lever, 3, controls
mid PTO on Tractor.
When lever is forward, neutral position, the gear drive
is disengaged.
When lever is rearward, 2000 rpm rear PTO is selected.
CAUTION: Always shut off PTO and shut
off Tractor engine before servicing PTO-
driven implement. Allow all movement
and motion to stop before leaving opera-
tor’s seat.
CAUTION: Always select engine speed
to ensure safe operation. Reduce speed
prior to turning or backing Tractor.
THREE-POINT HITCH
Complete operating instructions for 3-point hitch are
given in “Operation” section of this book.
Control Lever
FIG. 3-19: Position control lever, 1, adjust height
of 3 point hitch on rear of Tractor. Setting lever in a
particular position will set the height respectively. Full
up position is with lever fully rearward and full down
position is with lever completely forward.
CAUTION: Use position control lever, 1,
when attaching or detaching implement.
NOTE: When starting engine, ensure implement is
lowered to ground and position lever is fully
forward.
This reduces load on starter due to hitch try-
ing to raise when engine is cranked.
