TXG237
42
Rear PTO Shaft

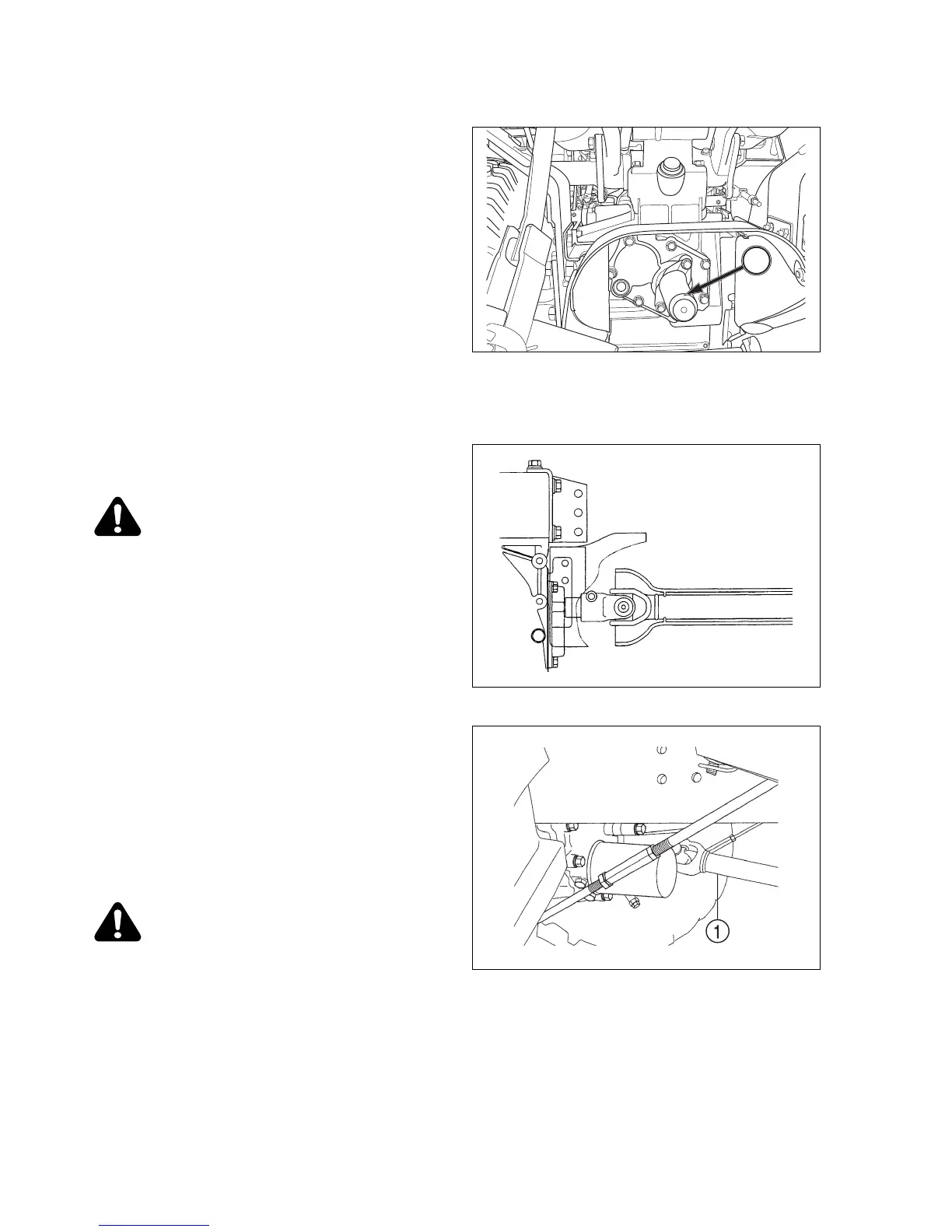

FIG. 4-10: A 6-spline 1 3/81(35mm) PTO shaft, 1, is
provided at rear of Tractor to provide power for mount-
ed and other PTO driven equipment as required.
A protective cover is positioned over shaft splines
when not in use.
Normal rear PTO shaft operating speed of 540 rpm is
attained at 2532 engine rpm.
IMPORTANT: When rear PTO is used with 3-point
mounted equipment, it may be neces-
sary to remove drawbar, 2, at rear of
Tractor.
Some types of mounted equipment,
when lowered, may allow PTO shaft to
contact drawbar.
FIG. 4-11: Implement drive shaft shown connected to
Tractor rear PTO shaft.
CAUTION: Make sure all PTO shields are
installed on Tractor and equipment. Be-
fore cleaning or adjusting Tractor or PTO
driven machine, SHUT OFF ENGINE AND
DISENGAGE PTO.
Mid PTO Shaft
FIG. 4-12: Mid PTO, 1, is forward-facing shaft lo-
cated at underside of Tractor. The mid PTO is used
to operate certain mid or front-mounted implements.
A1”(25.4mm) 15 spline shaft is used.
Mid PTO cover must be installed when use of mid
PTO is not required.
2000 rpm @ 2476 engine rpm
CAUTION: Make sure all PTO shields are
installed on Tractor and equipment. Be-
fore cleaning or adjusting Tractor or any
PTO driven machine, SHUT OFF ENGINE
AND DISENGAGE PTO.
1
FIG. 4-10
FIG. 4-11
FIG. 4-12
