TXG237
48

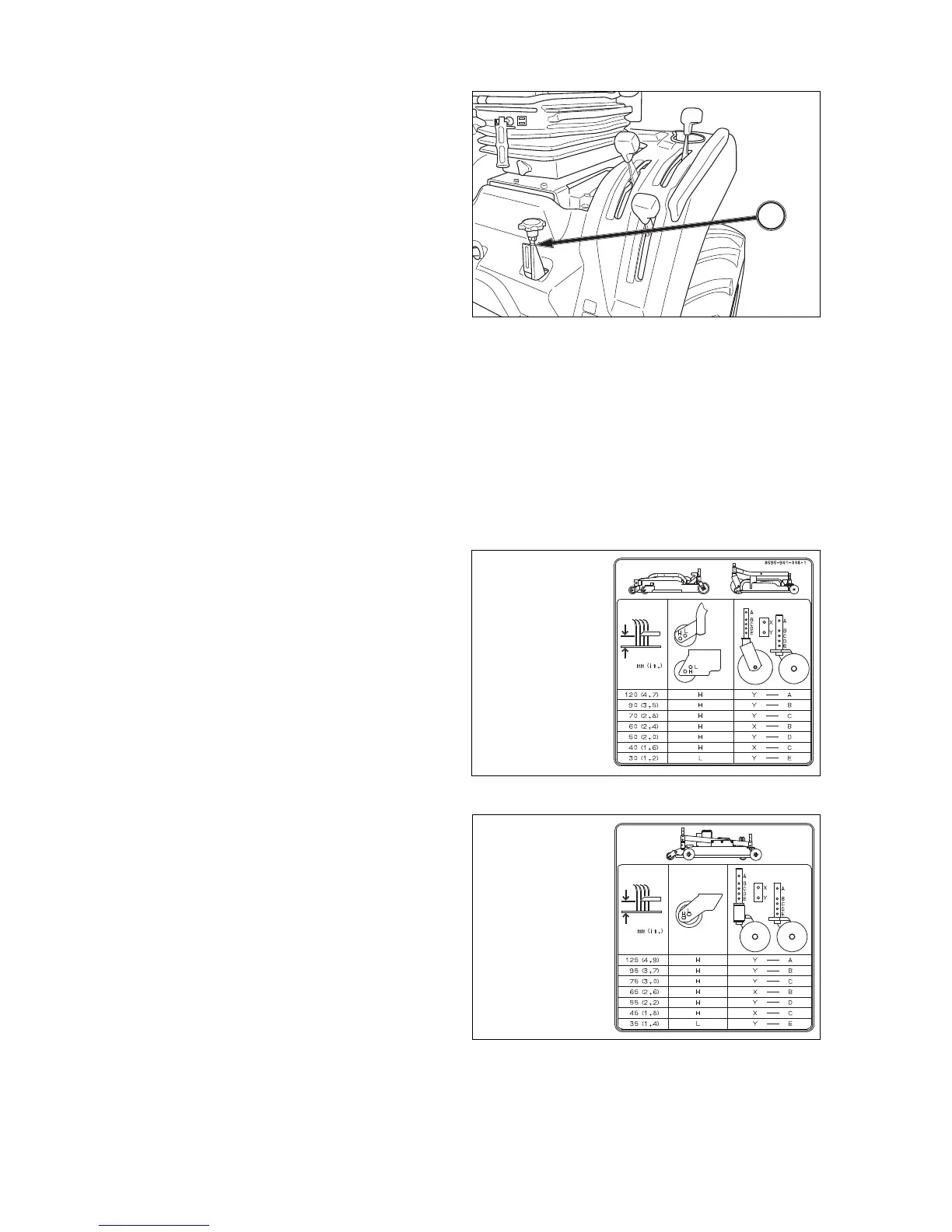

How to adjust Height Control
・
Lift up the mower deck
・
Set the position of gauge wheel to cutting height
according to the decal on the belt cover.
・
Down the deck until the gauge wheel sit on the
ground.
・
Turn the height adjust knob to the (+) direction until
the knob is not be able to turn.
・
Lift the mower deck a bit.
・
Turn the height adjust knob to the (+) direction in a
few turns.
・
Down the deck completey.
If you get trace of the gauge wheel, please retry as
the above procudures.
NOTE: The height adjust gauge may not show the
practical cutting height.
Adjust cutting height by the gauge wheel of
the mower deck.
Turn the knob to the (-) direction as much as
possible when detaching and attaching the
mower deck.
1
8658-901-031-0
Label (Cutting)
SMM54-TXG23E4F
SRM54-TXG23E4F
FIG. 4-24
FIG. 4-25
FIG. 4-26
TXG237 attachable mower deck list
SSM60-TXG23E4F
SSM54-TXG23E4F
SSM48-TXG23E4F
SMM54-TXG23E4F
SRM54-TXG23E4F
SRM48-TXG23E4F
Gauge wheel label
8595-901-008-1D
Label (Gauge wheel)
SSM60-TXG23E4F
SSM54-TXG23E4F
SSM48-TXG23E4F
SRM48-TXG23E4F
