TXG237
54
LUBRICATION/FILL POINTS

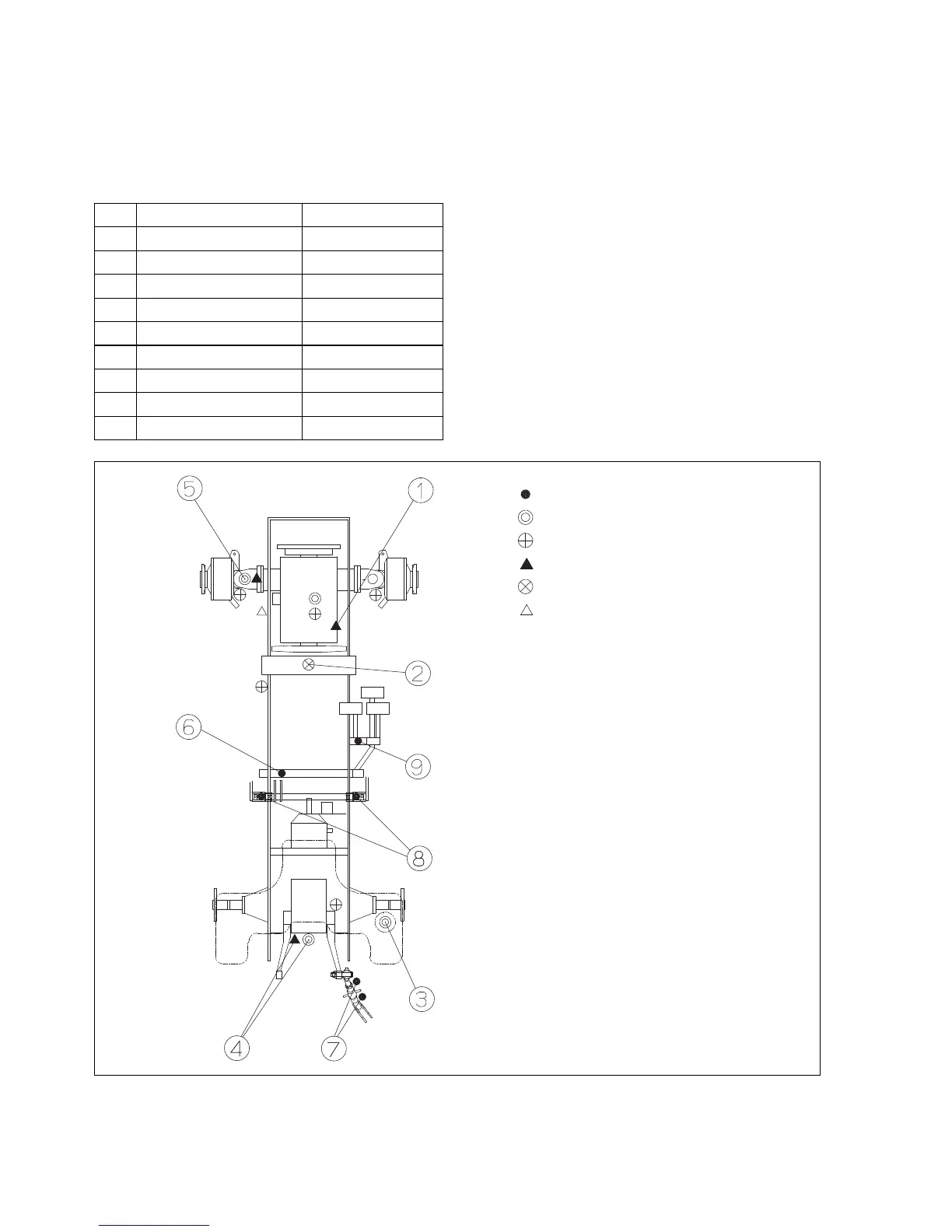

FIG. 5-1: General layout of lubrication, fill and drain
locations on Tractor:
TABLE 8
Ref. Description Type
1. Crankcase Engine Oil
2. Engine Radiator Engine Coolant
3. Fuel Tank Diesel Fuel
4. Rear Housing Hydraulic Oil
5. 4WD Axle Gear Oil
6. Brake Pivots Grease
7. Leveling Turnbuckle Grease
8. Linkage of Mower Grease
9. HST pedal Grease
Grease fittings (Grease nipple)
Fill points
Drain points
Oil check window
Fill point (coolant)
Drain point (coolant)
FIG. 5-1
