OPERATION
49
ROLL OVER PROTECTIVE STRUCTURE (ROPS)
(R Type)

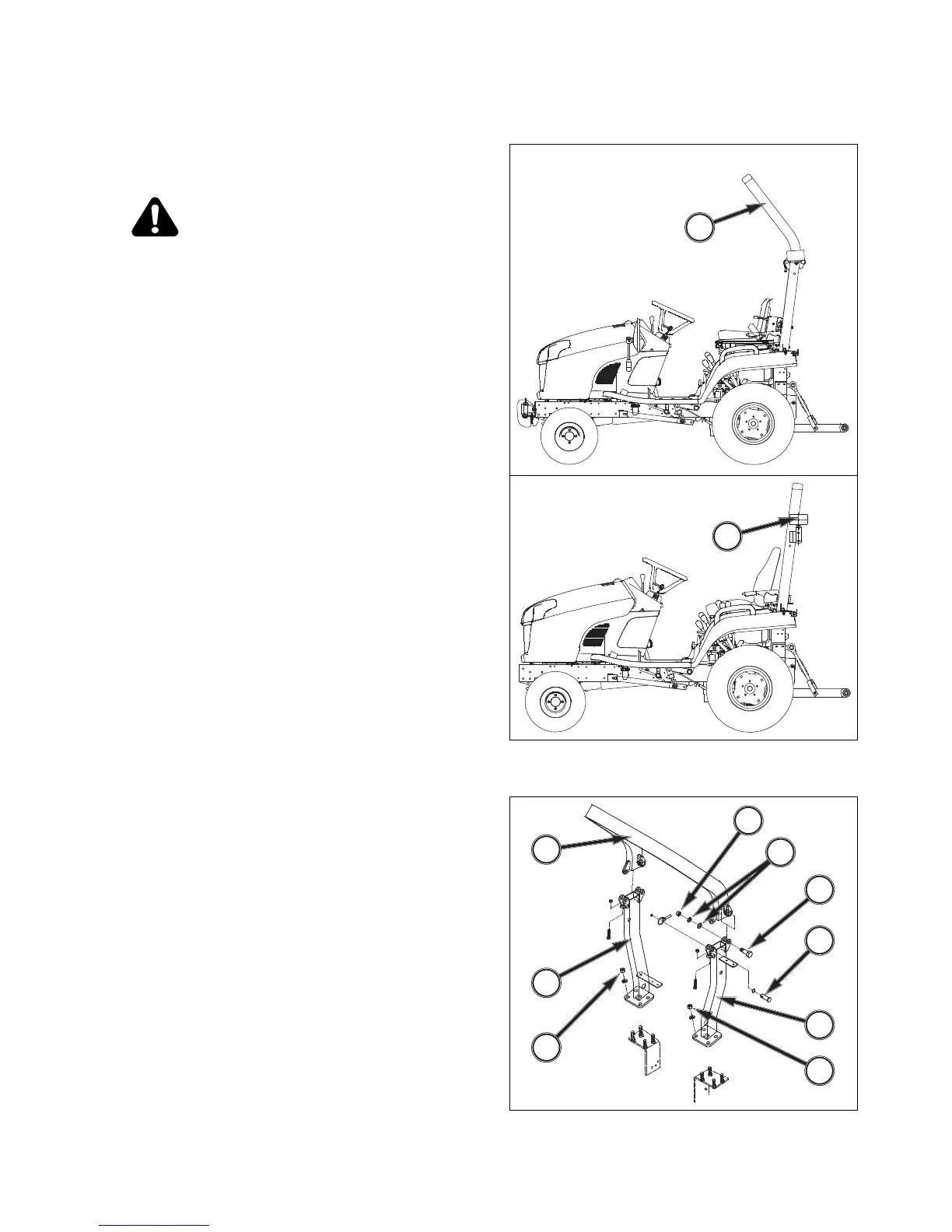

FIG. 4-27: This Tractor is equipped with a roll-over
protective structure (ROPS). Seat belts must be worn.
WARNING: If ROPS is damaged during
operation, do not weld, bend or straighten.
Make sure all components are in correct
working order to provide the intended
protection.
Only original bolts, or equivalent replacements, must
be used and torque to correct torque value.
NOTE: E4 Type does not have a seat and seat belt.
Consult your iseki dealer.
(R E4 Type)
FIG. 4-28: Carefuly lift lower ROPS frame legs (3) into
position on top of fenders (4).
Install 8 pieces of M16 nuts (6) with spring washers to
secure the lower ROPS frame to the fenders.
Tighten the ROPS securing hardware.
3
8
6
6
3
12
9
11
10
1
ROLL OVER PROTECTIVE STRUCTURE (ROPS)
E4 Type
1
E6 Type
FIG. 4-28
FIG. 4-27
