TXG237
32
FIG. 3-20
FIG. 3-21
FIG. 3-22
Lowering Rate Control Knob

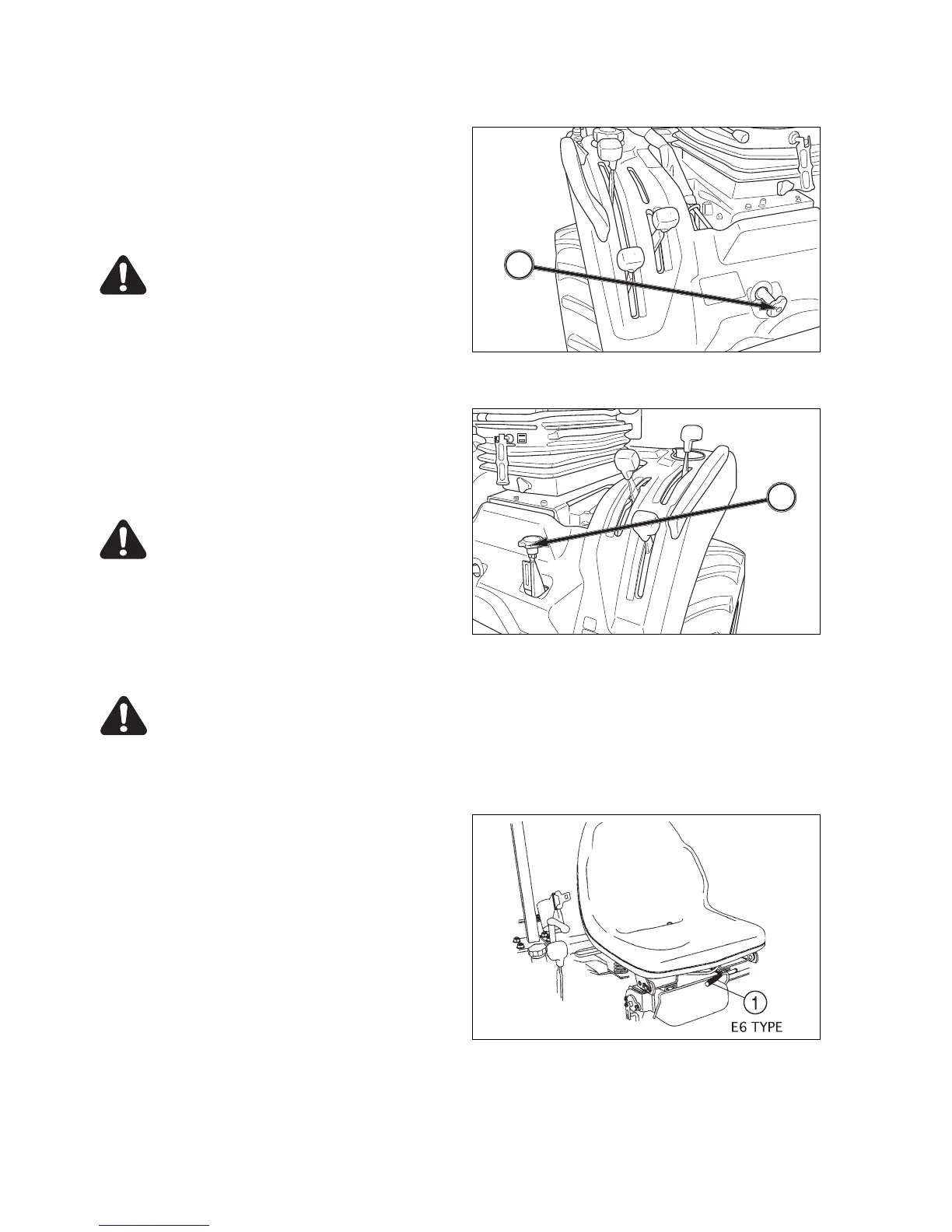

FIG. 3-20: Lowering rate knob, 1, adjusts “rate of
drop” of 3 point implements. Turning knob clockwise
will increase lowering time and counterclockwise will
decrease lowering time. Turning knob fully clockwise
will lock implement (or hitch) in raised position for
transport.
CAUTION: When working near or under
mounted equipment, securely block in
position and turn lowering rate clockwise
to “stop”.
Cutting Height Control Knob
FIG. 3-21: Cutting height control knob, 1, adjusts the
cutting height for mid mount mower deck. Turning
knob clockwise will drop the cutting height of mower
deck and counterclockwise will raise the cutting height
of mower deck.
CAUTION: When operating without mid
mount mower deck, the linkage for mower
deck must be in fully up position by using
position control lever. Also, Turn the cut-
ting height control knob to counterclock-
wise and to set highest position.
COMFORT ADJUSTMENT
CAUTION: Never make seat adjustment
while Tractor is in motion. Make sure
adjustment is “locked” prior to operation
unit.
Seat Adjustment (E6 Type)
FIG. 3-22: Lift seat latching lever, 1, to release seat
latch and permit seat to be adjusted fore and aft.
NOTE: For E4 Type follow the operator’s manual at-
tached with it for seat adjustment.
Seat Switch
For E4 type - Seat switch circuit is installed in tractor
so that we recommend to equip the seat
switch on it.
For E6 type - Seat switch is originally equipped in our
factory.
1
1
