MAINTENANCE & ADJUSTMENT
73

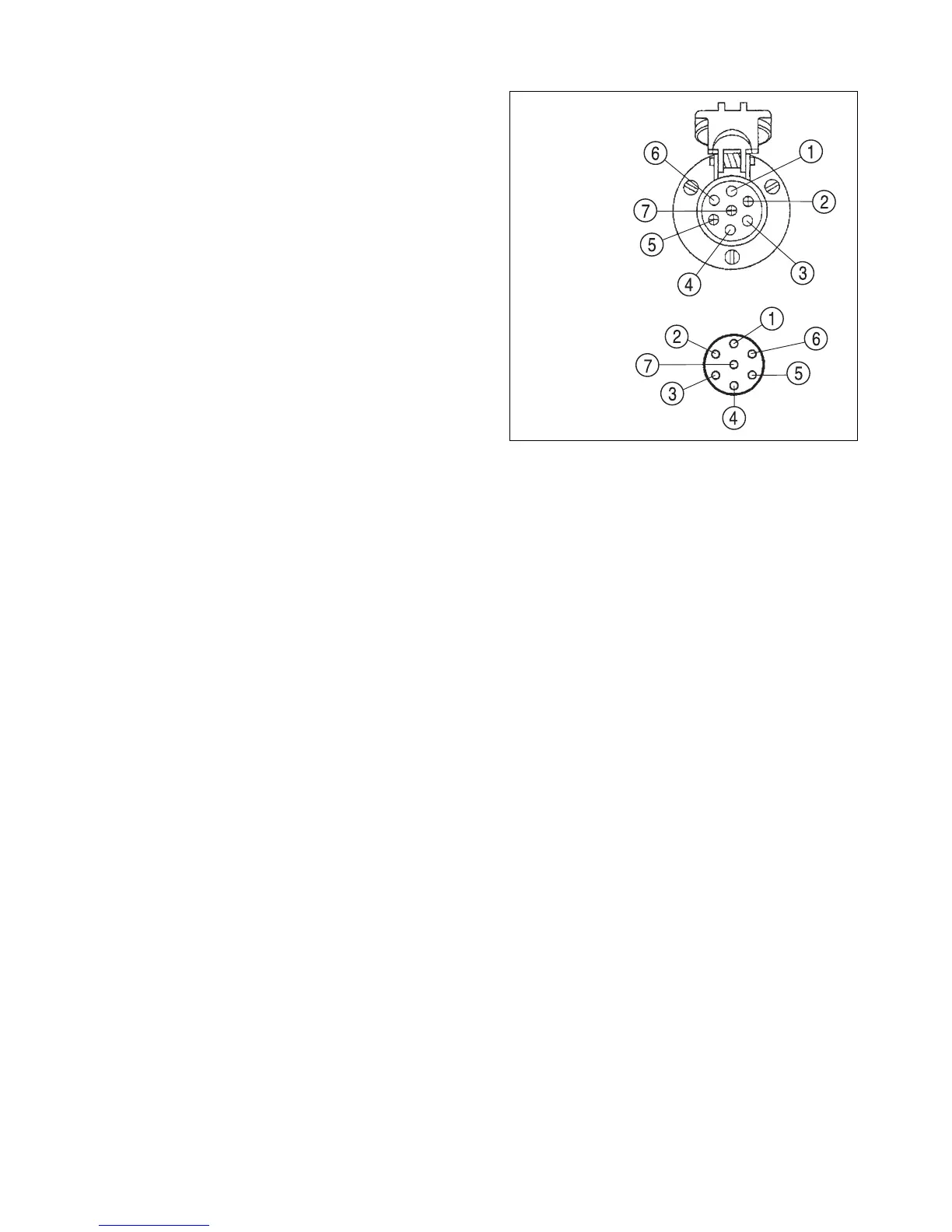

FIG. 5-38
Trailer Socket (E4 Type)
A standard 7pin trailer can be provided and is
mounted at the rear or the Tractor, the connectors (Fig.
5-38) are as follows.
L: Left-hand rear direction indicator (1)
54G: Not used (2)
31: Earth (-) (3)
R: Right-hand rear direction indicator (4)
58R: Right-hand rear light (5)
54: Right-and left-hand brake stop lights (6)
58L: Left-hand rear light & number plate light (7)
NOTE: The letters and numbers in the reference
column are marked on the rear of the socket
and plug, next each terminal.
Lamps
(a) Head lamps 12V 45/40W
(b) Front turn signal lamps 12V 21W
(c) Front small lamps 12V 5W
(d) Stop lamps 12V 21W
(e) Tail lamps 12V 5W
(f) Rear turn signal lamps 12V 21W
(g) License plate lamp 12V 5W
NOTE: A special fuse is used - use only genuine
ISEKI parts.
TrailerSocket
(Frontview)
TrailerPlug
(Frontview)
