MAINTENANCE & ADJUSTMENT
79

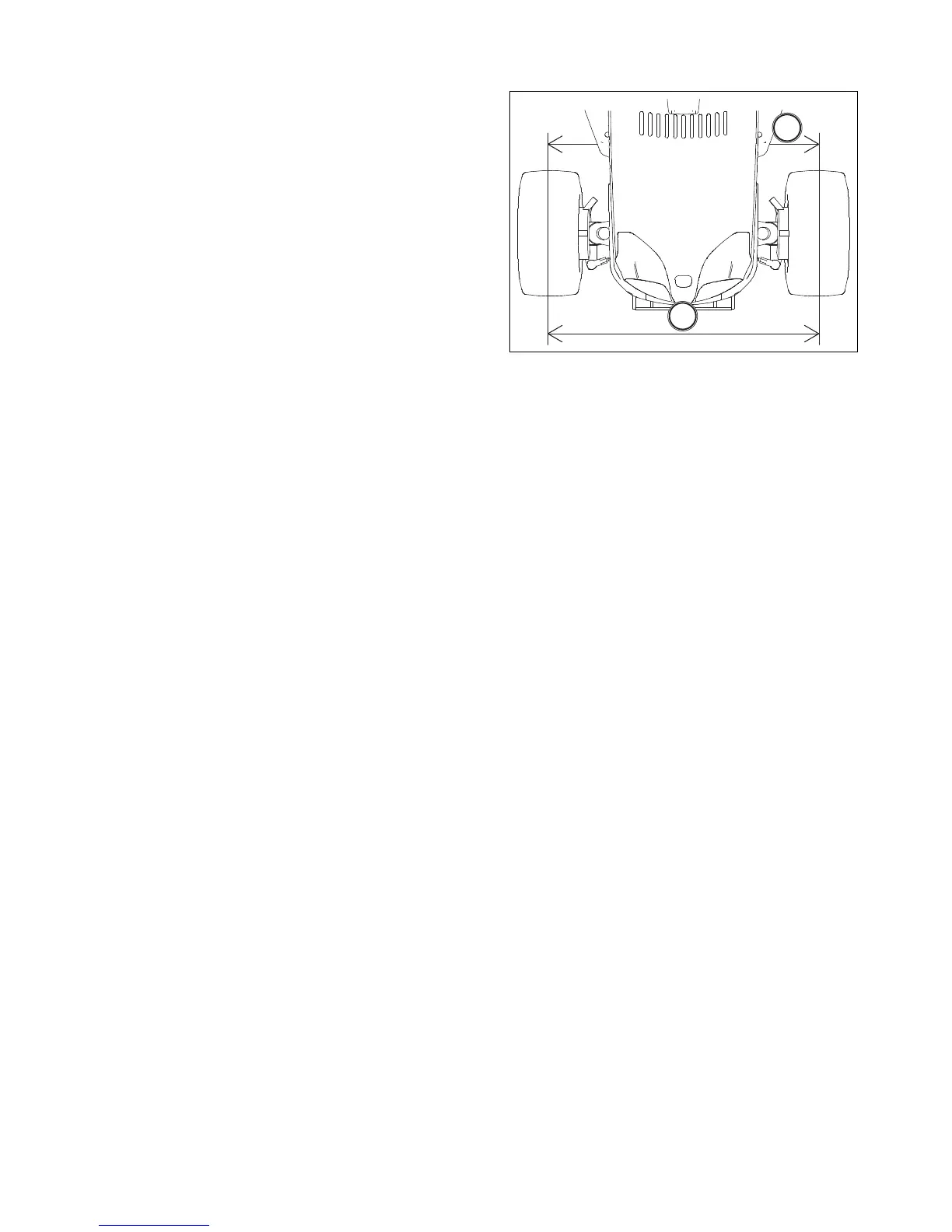

FIG. 5-44
FIG. 5-44: Correct “toe-in” dimension of front wheels (A
minus B) is 2 to 6mm.
NOTE: Measure toe-in, from tyre center to tyre cen-
ter at a point halfway up on face of each tyre.
To adjust, remove clip securing rubber boot to tie rod.
Loosen lock nut and rotate the tie rod to adjust. Tie
rod ball joints should freely rotate in cylinder ends.
Adjust each side evenly. Ball joints must move freely
after lock nuts are tightened.
A
B
