ISHIDA IGB-60 - Chapter 2 Test Mode; Operation; Starting Each Mode; Ending Test Mode

Manual No. 085-3435-07 9/45 IGB/IGX Series (Overseas Specifications) Service Manual
Chapter 2 Test Mode
The Test Mode is used to check the machine when maintenance is performed or to perform settings.
2.1 Operation
The keys used in the following diagram are for Asia/Oceania specifications. For specifications for other
countries, use the corresponding keys.

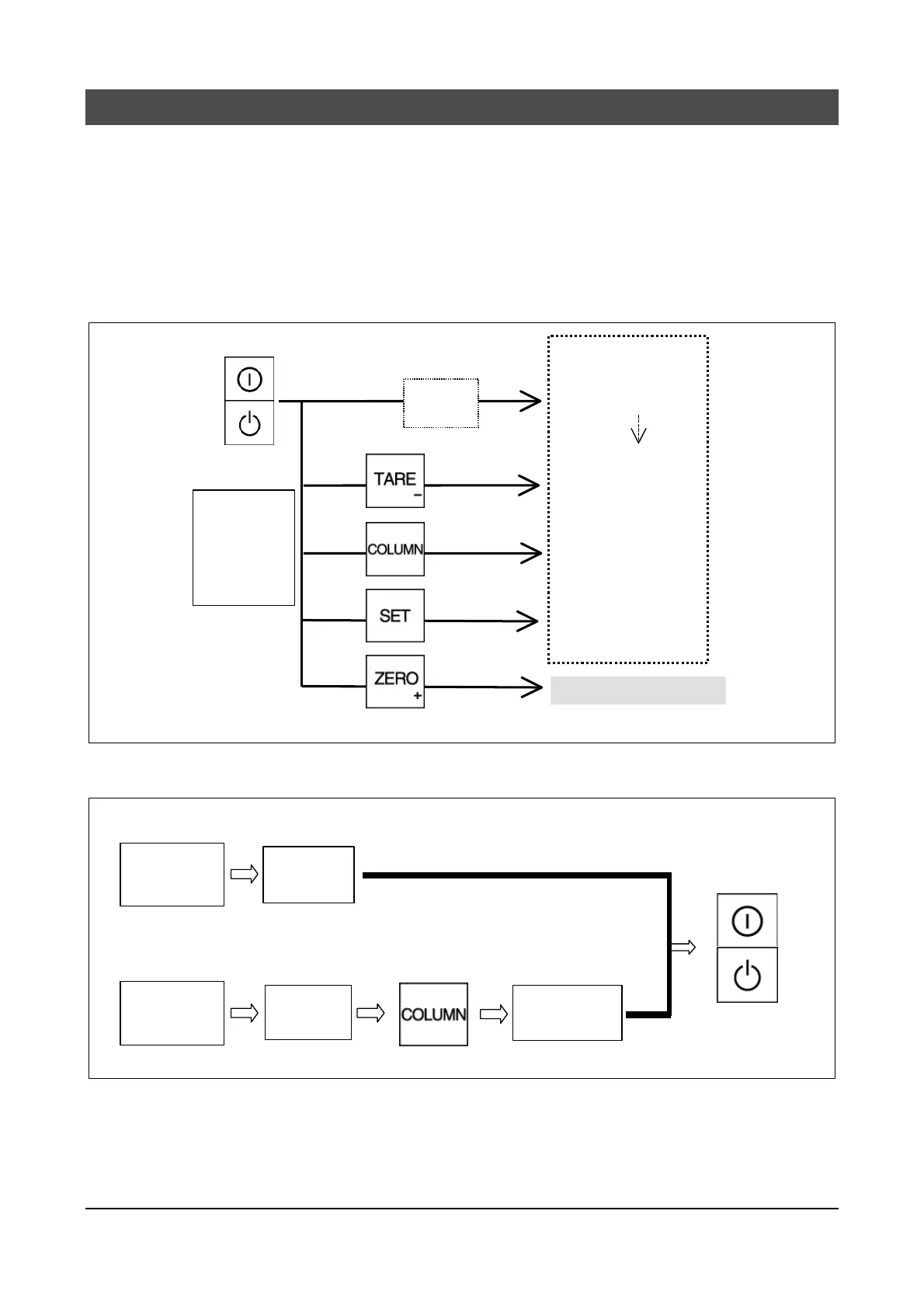

2.1.1 Starting Each Mode

















Scale ON
Start
Check
Normal Mode
Test Mode
Program Mode
Voltage Check
(IGB only)
Setup Mode
Press for 2 seconds or more
Release
ON/OFF key,
Then press one
of these keys
while all
segments are
illuminated
Operation Manual
2.1.2 Ending Test Mode
C1 Mode
C2 Mode
C3 to C9
Mode
In Mode
In Mode
C3 to C9
Mode
Scale OFF
You cannot return to Cx mode.
