ISHIDA IGB-60 - Checking and Adjusting Gap of Four-corner Limit

Manual No. 085-3435-07 42/45 IGB/IGX Series (Overseas Specifications) Service Manual
3

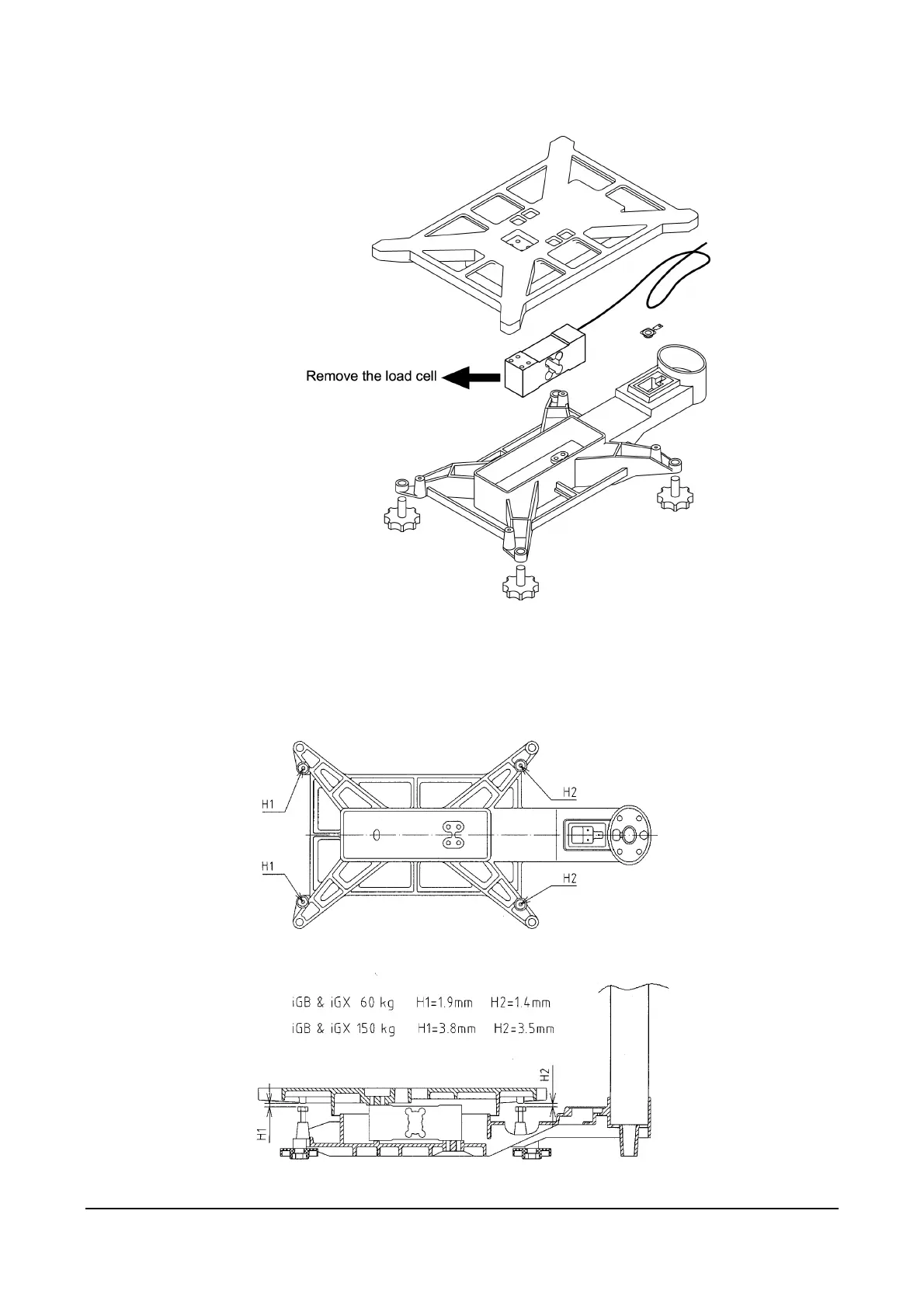

Remove the load cell unit. Then, install a new load cell unit and reverse the above
procedure.
4.3.1 Checking and Adjusting Gap of Four-corner Limit
In the two spots of the four-corner limit front and of the four-corner limit rear (display pole side), adjust
the gaps to the following values.
