ISHIDA IGB-60 - Replacing and Adjusting Load Cell

Manual No. 085-3435-07 41/45 IGB/IGX Series (Overseas Specifications) Service Manual
4.3 Replacing and Adjusting Load Cell
Load Cell Specifications
Model Type
Rated
Capacity
Rated
Output
Input
Resistance
Output
Resistance
insulation
Resistance
IGB/X -60 LOC-ISS10-100kg 100kg 2.0mV/V±5% 1500Ω±10Ω 1000Ω±3Ω
5GΩ
IGB/X -150 LOC-ISS10-300kg 300kg 2.0mV/V±5% 1500Ω±10Ω 1000Ω±3Ω
5GΩ
1

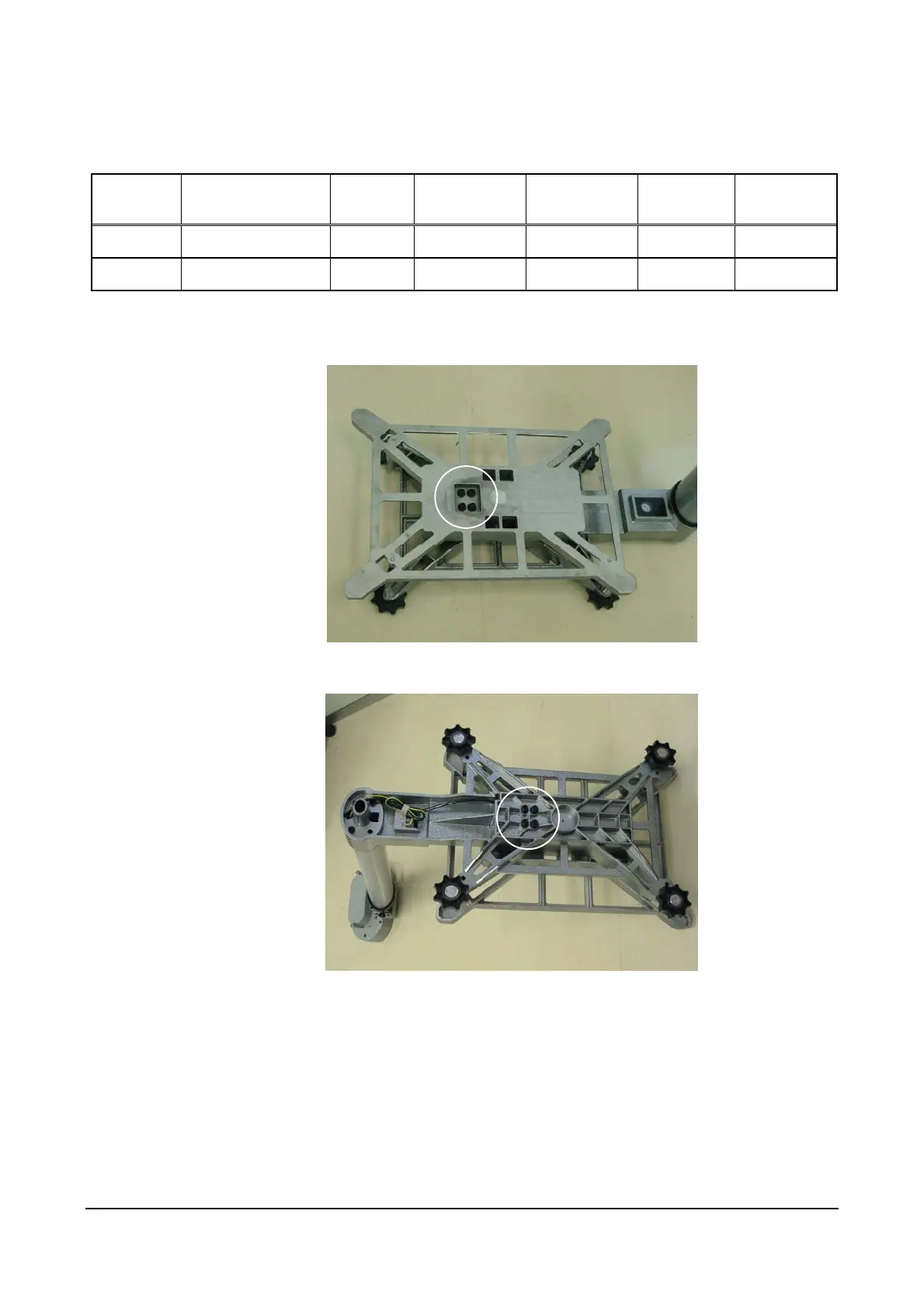

Using an allen wrench, remove the four hexagon-headed bolts and spacers fixing the load
cell unit from the top of the base.
2
Remove the four hexagon-headed bolts and spacers from the bottom of the base.
