ISHIDA IGB-60 - C8 Mode E2 ROM Data Reading; E2 ROM Data

Manual No. 085-3435-07 24/45 IGB/IGX Series (Overseas Specifications) Service Manual

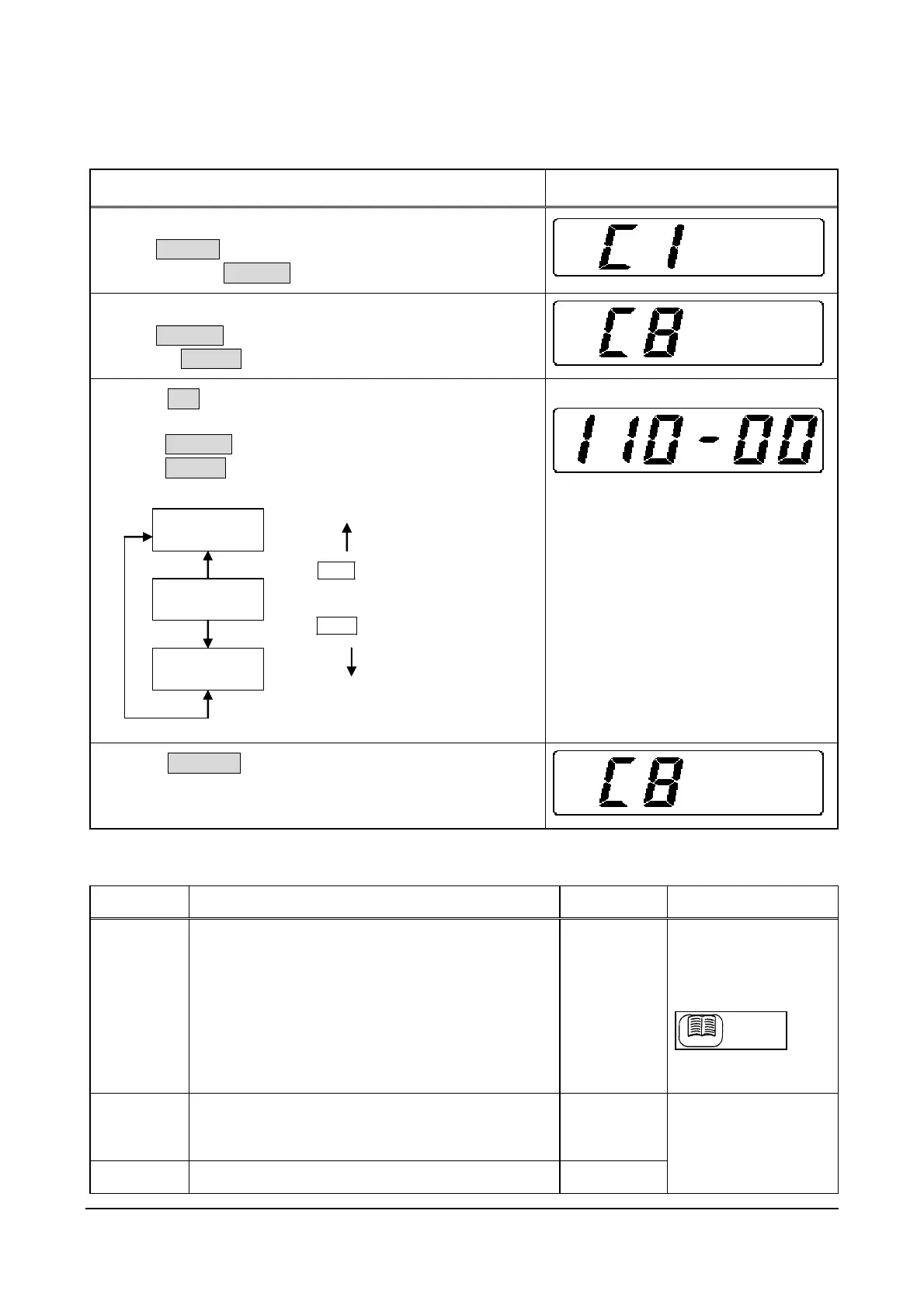

2.9 C8 Mode: E2ROM Data Reading
Data from address 000 to address 127 can be read.
Operation Display
1. Starting Test Mode
 Press ON/OFF.
 Press and hold ZERO(+) while all segments are lit.
2. Entering C8 Mode
 Press ZERO(+) seven times.
Or, press TARE(-) twice.
3. Press SET.
To change an address
Press ZERO(+) to increase an address.
Press TARE(-) to decrease an address.
Address 000
Address 110
Address 127
TARE k ey
C8 Starting address
ZERO key
Address 3 digits −Data 1 byte
4. Press COLUMN to return to Test Mode.
E2ROM Data
Address Item Data Range Remarks
Data set in Program
Mode of Operation
Manual.
10 byte × 10 data
0 to 99
 Preset data (10 PLUs)
 Upper limit 17bit
 Lower limit 17bit
 Tare amount (A range) 18bit
 Tare amount (B range)/Single weight 20bit
 Check sum 8bit
0 to 60000
Reference
Ref er enc
e
Refer to IGB/IGX
Operation Manual.
100A Scale mode data Capacity (bit1)
lb mode (bit2)
Counting (bit3)
0 to F
100B Reserved -
